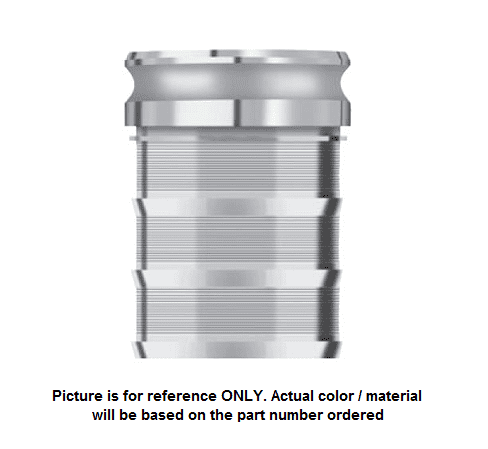

1200540H (40EHD) by PT-Coupling | Heavy Duty 4" Adapter x 4" Hose Shank | Brass | Buna-N Seal

1200540H (40EHD) by PT-Coupling | Heavy Duty 4" Adapter x 4" Hose Shank | Brass | Buna-N Seal

Save $29.49 Save $29.49
$265.37
$265.37 - $265.37
$265.37
$235.88
$235.88 - $235.88
$235.88
Specifications for Variant SKU: 1200540H PT-Coupling
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 4in Male Cam & Groove, 4in Hose Barb
Material(s): Brass
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Heavy Duty Couplings - Part EHD - Heavy Duty Adapter x Hose Shank - Brass
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Heavy Duty
Adapter		 Hose Shank
Size		 Max. Allowable
Working Press.
(PSI)*
40EHD 1200540H 4" 4" 300 PSI
60EHD 1200560H 6" 6" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
