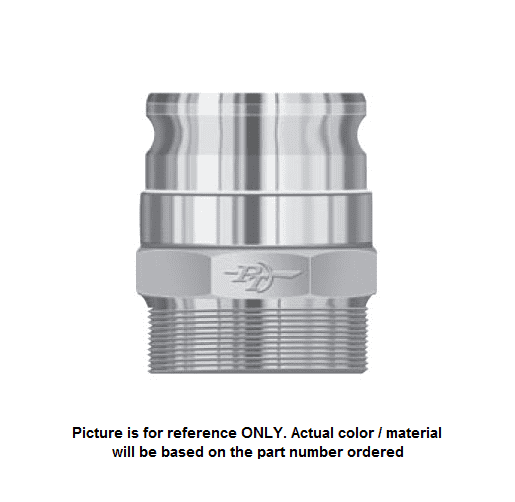

60174000 (40FSV) by PT-Coupling | 4" Swivel Adapter x 4" Male NPT | Aluminum | Viton Seal

60174000 (40FSV) by PT-Coupling | 4" Swivel Adapter x 4" Male NPT | Aluminum | Viton Seal

Save $28.04 Save $28.04
$252.36
$252.36 - $252.36
$252.36
$224.32
$224.32 - $224.32
$224.32
Specifications for Variant SKU: 60174000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 4in Male Cam & Groove, 4in Male NPT
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part FSV - 360° Swivel - Adapter x Male NPT Thread - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Adapter
Size		 Male NPT
Thread Size		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15FSV 60171500 - 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 250 PSI
20FSV 60172000 - 2" 2" 3.57" 2.57" 1.72" 2.84" 0.28" 250 PSI
25FSV 60172500 - 2-1/2" 2-1/2" 4.18" 2.78" 2.14" 3.45" 0.29" 200 PSI
30FSV 60173000 - 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 200 PSI
40FSV 60174000 - 4" 4" 4.79" 3.19" 3.78" 5.27" 0.40" 150 PSI
60FSV 60176000 - 6" 6" 5.20" 3.40" 5.84" 7.70" 0.60" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
