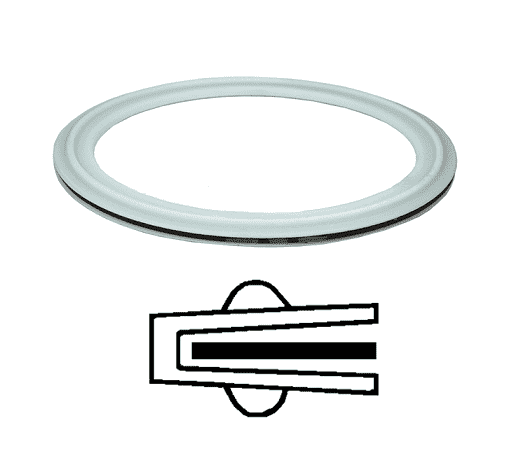

40MP-GRE400 Dixon 4" Sanitary PTFE Envelope Clamp Gasket with EPDM Filler

40MP-GRE400 Dixon Valve 4" Sanitary PTFE Envelope Clamp Gasket with EPDM Filler

Save $6.30 Save $6.30
$17.33
$17.33 - $17.33
$17.33
$11.03
$11.03 - $11.03
$11.03

Dixon Sanitary Fittings Sanitary Clamp Gasket - PTFE Envelope Clamp Gasket with EPDM Filler
Specifications for Variant SKU: 40MP-GRE400 Dixon
Seal Material(s): PTFE & EPDM
Features:
  • Color Code: Not usually marked
  • Peroxide cured FKM.
  • Meets 21CFR 177.1550
  • PTFE passed USP Class VI Cytotoxicity testing.
  • Note: PTFE is a material subject to plastic flow. When cycled through heat and then cooled down in process lines, PTFE gaskets will not return to the original configuration and it will continue to compress as the cycling continues. This plastic flow will allow leakage if clamp torques are not maintained.
Part Number Size Weight (Lbs.)
40MP-GRE100 1" 0.0150
40MP-GRE150 1-1/2" 0.0100
40MP-GRE200 2" 0.0150
40MP-GRE250 2-1/2" 0.0200
40MP-GRE300 3" 0.0300
40MP-GRE400 4" 0.0400
40MP-GRE600 6" 0.0530
40MP-GRE800 8" -
40MP-GRE1000 10" -
40MP-GRE1200 12" -
