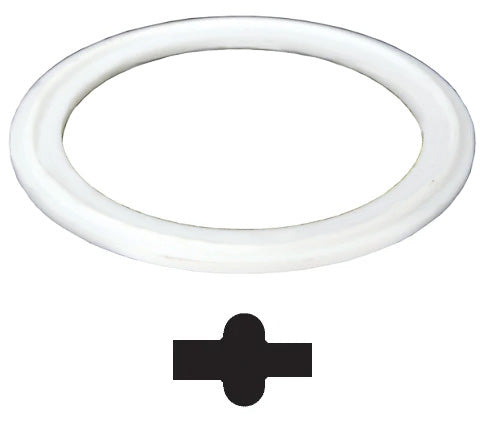

40MPV-G200 Dixon Valve 2" Sanitary Schedule 5S and 10S PTFE Pipe Gasket

40MPV-G200 Dixon Valve 2" Sanitary Schedule 5S and 10S PTFE Pipe Gasket

Save $19.51 Save $19.51
$40.98
$40.98 - $40.98
$40.98
$21.47
$21.47 - $21.47
$21.47

Dixon Sanitary Fittings Sanitary Pipe Size Schedule 5S and 10S Pipe Gasket - PTFE Pipe Gasket

Meets 21CFR 177.1550

Passed U.S.P. Class VI Cytotoxicity testing
Specifications for Variant SKU: 40MPV-G200 Dixon
Seal Material(s): PTFE
Features:
  • Color code: no dot
Notes:
  • Not recommended for use with bolted clamps
  • Pipe size and Tube OD size materials are not interchangeable.
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
  • PTFE is a material subject to plastic flow. When cycled through heat and then cooled down in process lines, PTFE gaskets will not return to the original configuration and it will continue to compress as the cycling continues. This plastic flow will allow leakage if clamp torques are not maintained.
Part Number Size Weight (Lbs.)
40MPV-G100 1" 0.0150
40MPV-G150 1-1/2" 0.0200
40MPV-G200 2" 0.0200
40MPV-G250 2-1/2" 0.0300
40MPV-G300 3" 0.0300
40MPV-G400 4" 0.0450
40MPV-G600 6" 0.0600
40MPV-G800 8" 0.0150
40MPV-G1000 10" -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
