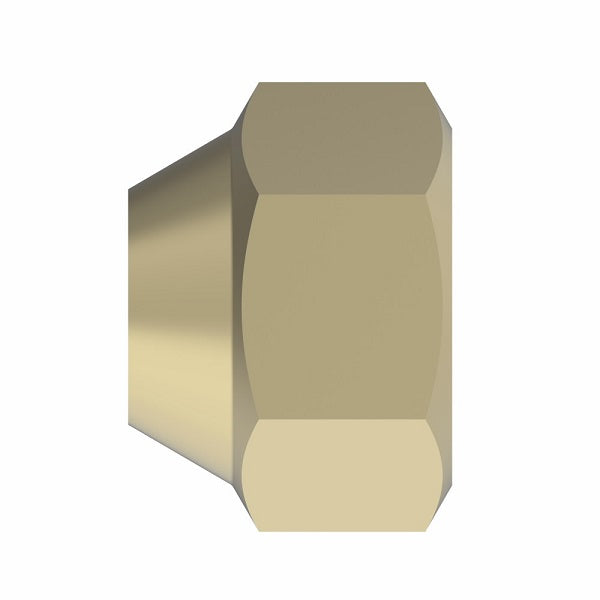

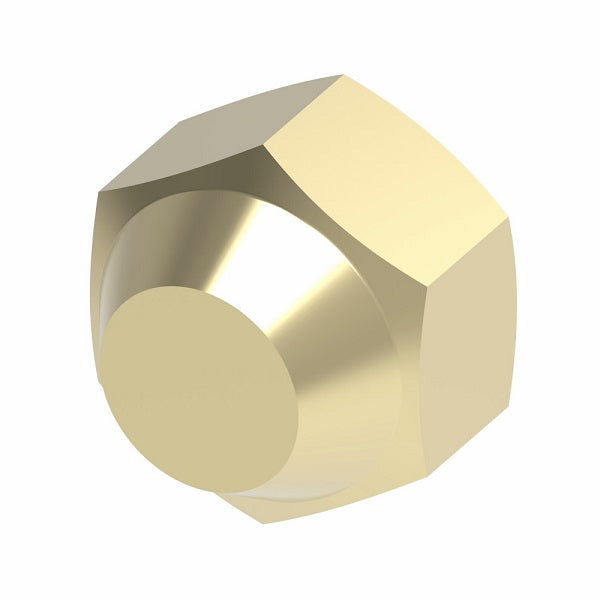

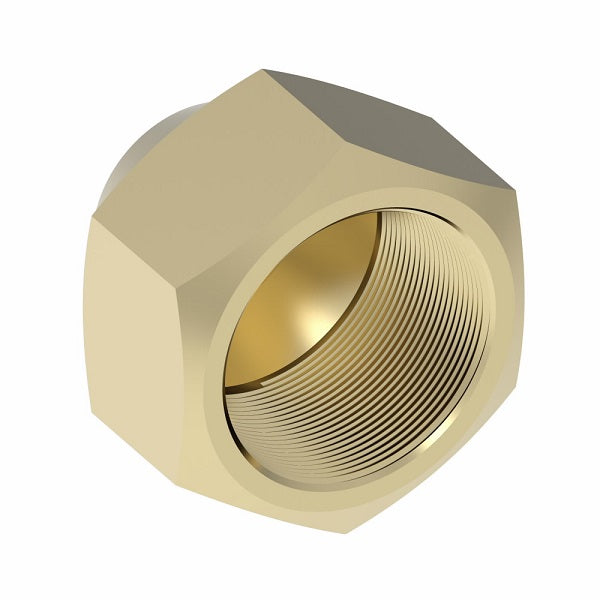

40X10 by Danfoss | SAE 45° Flare Cap | 5/8" Tube OD | Brass
40X10 by Danfoss | SAE 45° Flare Cap | 5/8" Tube OD | Brass
40X10 by Danfoss | SAE 45° Flare Cap | 5/8" Tube OD | Brass
40X10 by Danfoss | SAE 45° Flare Cap | 5/8" Tube OD | Brass

40X10 by Danfoss | SAE 45° Flare Cap | 5/8" Tube OD | Brass

$10.11 - $10.11
$10.11
$10.11 - $10.11
$10.11

Aeroquip® by Danfoss
SAE 45° Flare Cap
Specifications for Variant SKU: 40X10 Danfoss
Shape (Orientation): No Orientation
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Tube O.D. Hex
C		 L
40X2 1/8" 7/16" 0.40"
40X3 3/16" 1/2" 0.47"
40X4 1/4" 7/16" 0.53"
40X5 5/16" 5/8" 0.62"
40X6 3/8" 3/4" 0.69"
40X8 1/2" 7/8" 0.84"
40X10 5/8" 1-1/16" 0.97"
40X12 3/4" 1-5/16" 1.09"
