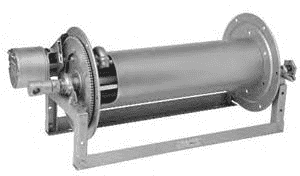

4100 Hannay Manual Bevel Gear Crank Rewind Reel (G-4124-17-18)

G-4124-17-18 by Hannay | 4100 Series | Manual Bevel Gear Crank Rewind Reel

Save $410.67 Save $410.67
$1,026.67
$1,026.67 - $1,026.67
$1,026.67
$616.00
$616.00 - $616.00
$616.00



4100 Manual Bevel Gear Crank Rewind Reels To handle single 3/4" or 1" I.D. hose.
Specifications for Variant SKU: G-4124-17-18 Hannay
Series: 4100 Series
Applications:
  • Fuel Dispensing
  • Fire Protection
  • Water Supply
  • Chemical Transfer
Features:
  • Lightweight compact reels designed for long length of hose.
  • Gear driven crank rewind handle is removable.
  • Gear driven crank rewind has an adjustable pinion brake.
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B E Crank E Power F X
G-4118-17-18 50' length 35' length 62 lbs. 15" 10" 18" 20.5" 21.5" 7.5"
G-4124-17-18 100' length 50' length 72 lbs. 21" 16" 18" 20.5" 27.5" 13.5"
G-4130-17-18 150' length 75' length 83 lbs. 27" 22" 18" 20.5" 33.5" 19.5"
G-4138-17-18 200' length 100' length 96 lbs. 35" 30" 18" 20.5" 41.5" 27.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
