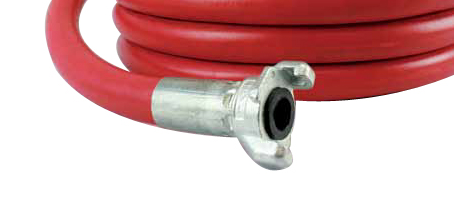

4122-0075-050 Jason Industrial 4122 Jackhammer Hose Assembly - Red - 150 PSI - Universal End - 3/4" ID - 1.16" OD - 50ft

4122-0075-050 by Jason Industrial | 4122 Series | Jackhammer Hose Assembly | 150 PSI | Universal End | 3/4" ID | 1.16" OD | Red | SBR/NBR | 50ft

Save $0.94 Save $0.94
$93.10
$93.10 - $93.10
$93.10
$92.16
$92.16 - $92.16
$92.16

Jason Industrial Inc. Hose - Air Hose - 4121 & 4122 Jackhammer Hose Assemblies

Package Quantity: 50 FT

Specifications for Variant SKU: 4122-0075-050 Jason
Series: 4122 Series
Hose Color(s): Red
Internal Diameter: 0.75in
Outer Diameter: 1.16in
Tubing Construction: SBR/Nitrile Blend
Cover Construction: EPDM
Ends Configuration: 2-Lug Chicago, 2-Lug Chicago, Some Ends Match

SPECIFICATIONS

Application: For jackhammer applications. SAE Rating: N/A
Other Ratings: N/A Tube: SBR/NBR blend
Reinforcement: Two-Spiral, Polyester Yarn Cover: EPDM
Temperature Range: -22 deg. F (-30 deg. C) to +176 deg. F (+80 deg. C) Crimp Fittings: Crimped coupling with universal end
Reusable Fittings: N/A Branding: ID 4121 or 4122 300 PSI WP Production Date
Other Features:
  • Coupling crimped:
    • Better hose/coupling retention
    • No snagging
    • No leaking
  • Easy to handle
  • Weather, heat and ozone resistant
  • Excellent abrasion resistance
  • Hose WP is 300 PSI:
Part Number Color I.D. O.D. Reinforcement Spirals Max. Working Press. @ 68 deg. F** Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Coupled
4121-0075-050 Yellow 3/4" 19.05mm 1.16" 29.50mm 2 150 PSI 10.35 BAR N/A 0.54 lb./ft. 0.80 KG/m 5.00" 127.00mm 50ft
4122-0075-050 Red 3/4" 19.05mm 1.16" 29.50mm 2 150 PSI 10.35 BAR N/A 0.54 lb./ft. 0.80 KG/m 5.00" 127.00mm 50ft
**Assembly working pressure. Hose WP is 300 PSI Safety clip and lanyard not supplied. For safety reasons, please follow all OSHA regulations. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
