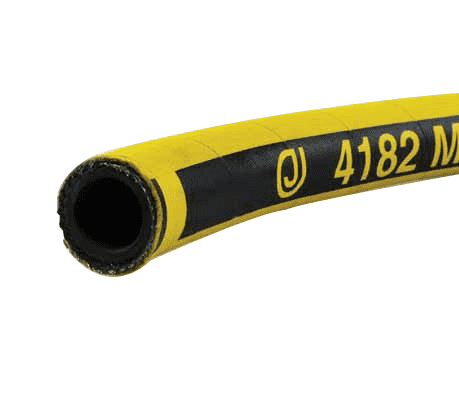

4182-0100-050 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | 1000 PSI | 1" ID | 1.49" OD | Yellow | NBR/SBR | 50ft

4182-0100-050 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | 1000 PSI | 1" ID | 1.49" OD | Yellow | NBR/SBR | 50ft

Save $2.00 Save $2.00
$191.33
$191.33 - $191.33
$191.33
$189.33
$189.33 - $189.33
$189.33

Jason Industrial Inc. Hose - Material Handling Hose - 4182 MSHA Mine Spray Hose - Yellow

Package Quantity: 50 FT

Specifications for Variant SKU: 4182-0100-050 Jason | 50 |
Series: 4182 Series
Hose Color(s): Yellow
Internal Diameter: 1in
Outer Diameter: 1.49in
Tubing Construction: SBR
Cover Construction: Chloroprene
Applicable Specs & Approvals: Applicable MSHA Standards
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For dust control in underground water spray operations SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Smooth, Black
Reinforcement: Two Plies of Steel Wire Cover: CR, Fabric Impression, Pin-Pricked, Yellow
Temperature Range: -0 deg. F (-18 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4182 MINE SPRAY MSHA IC-84-42 1000 PSI WP 69 BAR. Black longitudinal stripe
Other Features:
  • Meets MSHA rating IC-84-42
  • Flame retardant
  • Visible yellow color
  • Cover is weather and abrasion resistant
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4182-0050-050 1/2" 12.70mm 0.97" 24.60mm 2 1000 PSI 68.95 BAR N/A 0.40 lb./ft. 0.60 KG/m 5.90" 150.00mm 50ft
4182-0075-050 3/4" 19.05mm 1.22" 30.99mm 2 1000 PSI 68.95 BAR N/A 0.60 lb./ft. 0.89 KG/m 8.30" 210.00mm 50ft
4182-0075-100 3/4" 19.05mm 1.22" 30.99mm 2 1000 PSI 68.95 BAR N/A 0.60 lb./ft. 0.89 KG/m 8.30" 210.00mm 100ft
4182-0100-050 1" 25.40mm 1.49" 37.85mm 2 1000 PSI 68.95 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 50ft
4182-0100-100 1" 25.40mm 1.49" 37.85mm 2 1000 PSI 68.95 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 100ft
4182-0125-050 1-1/4" 31.75mm 1.81" 45.97mm 2 1000 PSI 68.95 BAR N/A 1.05 lb./ft. 1.56 KG/m 14.00" 355.00mm 50ft
4182-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 1000 PSI 68.95 BAR N/A 1.05 lb./ft. 1.56 KG/m 14.00" 355.00mm 100ft
4182-0150-050 1-1/2" 38.10mm 2.04" 51.82mm 2 1000 PSI 68.95 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 50ft
4182-0150-100 1-1/2" 38.10mm 2.04" 51.82mm 2 1000 PSI 68.95 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 100ft
4182-0200-050 2" 50.80mm 2.60" 66.04mm 2 1000 PSI 68.95 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 50ft
4182-0200-100 2" 50.80mm 2.60" 66.04mm 2 1000 PSI 68.95 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
