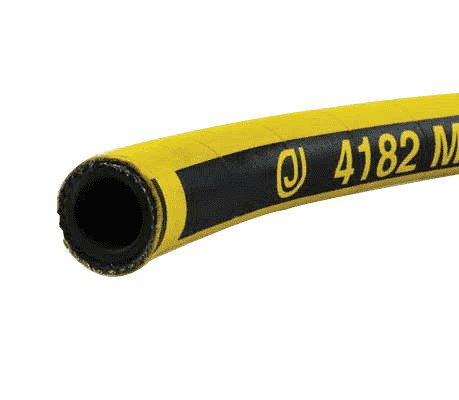

4182-0125-100 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | 1000 PSI | 1-1/4" ID | 1.81" OD | Yellow | NBR/SBR | 100ft

4182-0125-100 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | 1000 PSI | 1-1/4" ID | 1.81" OD | Yellow | NBR/SBR | 100ft

Save $5.04 Save $5.04
$502.37
$502.37 - $502.37
$502.37
$497.33
$497.33 - $497.33
$497.33

Jason Industrial Inc. Hose - Material Handling Hose - 4182 MSHA Mine Spray Hose - Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: 4182-0125-100 Jason | 100 |
Series: 4182 Series
Hose Color(s): Yellow
Internal Diameter: 1.25in
Outer Diameter: 1.81in
Tubing Construction: SBR
Cover Construction: Chloroprene
Applicable Specs & Approvals: Applicable MSHA Standards
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For dust control in underground water spray operations SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Smooth, Black
Reinforcement: Two Plies of Steel Wire Cover: CR, Fabric Impression, Pin-Pricked, Yellow
Temperature Range: -0 deg. F (-18 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4182 MINE SPRAY MSHA IC-84-42 1000 PSI WP 69 BAR. Black longitudinal stripe
Other Features:
  • Meets MSHA rating IC-84-42
  • Flame retardant
  • Visible yellow color
  • Cover is weather and abrasion resistant
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4182-0050-050 1/2" 12.70mm 0.97" 24.60mm 2 1000 PSI 68.95 BAR N/A 0.40 lb./ft. 0.60 KG/m 5.90" 150.00mm 50ft
4182-0075-050 3/4" 19.05mm 1.22" 30.99mm 2 1000 PSI 68.95 BAR N/A 0.60 lb./ft. 0.89 KG/m 8.30" 210.00mm 50ft
4182-0075-100 3/4" 19.05mm 1.22" 30.99mm 2 1000 PSI 68.95 BAR N/A 0.60 lb./ft. 0.89 KG/m 8.30" 210.00mm 100ft
4182-0100-050 1" 25.40mm 1.49" 37.85mm 2 1000 PSI 68.95 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 50ft
4182-0100-100 1" 25.40mm 1.49" 37.85mm 2 1000 PSI 68.95 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 100ft
4182-0125-050 1-1/4" 31.75mm 1.81" 45.97mm 2 1000 PSI 68.95 BAR N/A 1.05 lb./ft. 1.56 KG/m 14.00" 355.00mm 50ft
4182-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 1000 PSI 68.95 BAR N/A 1.05 lb./ft. 1.56 KG/m 14.00" 355.00mm 100ft
4182-0150-050 1-1/2" 38.10mm 2.04" 51.82mm 2 1000 PSI 68.95 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 50ft
4182-0150-100 1-1/2" 38.10mm 2.04" 51.82mm 2 1000 PSI 68.95 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 100ft
4182-0200-050 2" 50.80mm 2.60" 66.04mm 2 1000 PSI 68.95 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 50ft
4182-0200-100 2" 50.80mm 2.60" 66.04mm 2 1000 PSI 68.95 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
