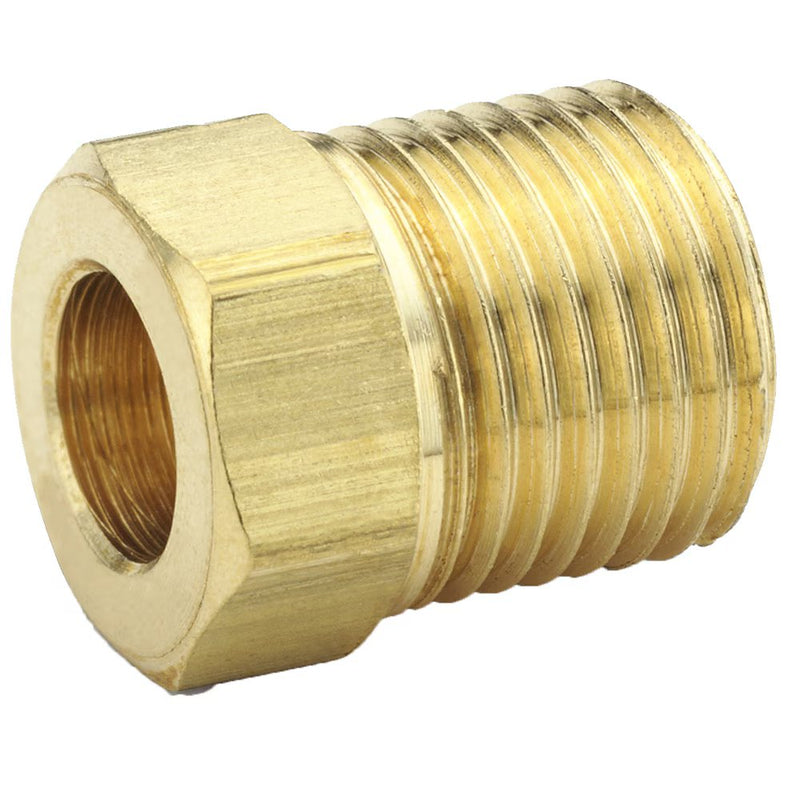

41IF-3 by Parker | Inverted Flare Fittings | 3/16" Inverted Flare | 3/8" Hex | .56" Length | Nut | Straight | Brass | Pack of 50

Save $5.78

$63.57

$63.57 - $63.57

$63.57

$57.79

$57.79 - $57.79

$57.79

by Parker Hannifin
Inverted Flared Fittings:Nut 41IF

Package Quantity: 50 Units

Quantity

Specifications for Variant SKU: 41IF-3 Parker \| 50 \|
Series:	41IF Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, UL Listed

Specification:
Product Features:	All brass construction UL listed for flammable liquid and gas Meets functional requirements of SAE J512 Steel nut for economy
Markets:	Air Conditioning Marine Mobile Engines
Applications:	Refrigerant Lines Brake Lines Fuel Lines
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Aluminum Welded Steel Hydraulic Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	L	D
41IF-2	1/8"	5/16"-28	5/16"	.52"	.133"
41IF-3	3/16"	3/8"-24	3/8"	.56"	.196"
41IF-4	1/4"	7/16"-24	7/16"	.56"	.259"
41IF-5	5/16"	1/2"-20	1/2"	.62"	.321"
41IF-6	3/8"	5/8"-18	5/8"	.66"	.384"
41IF-8	1/2"	3/4"-18	3/4"	.74"	.508"
41IF-10	5/8"	7/8"-18	7/8"	.80"	.633"
41IFS-3 (Steel Material)	3/16"	3/8"-24	3/8"	.56"	.196"
