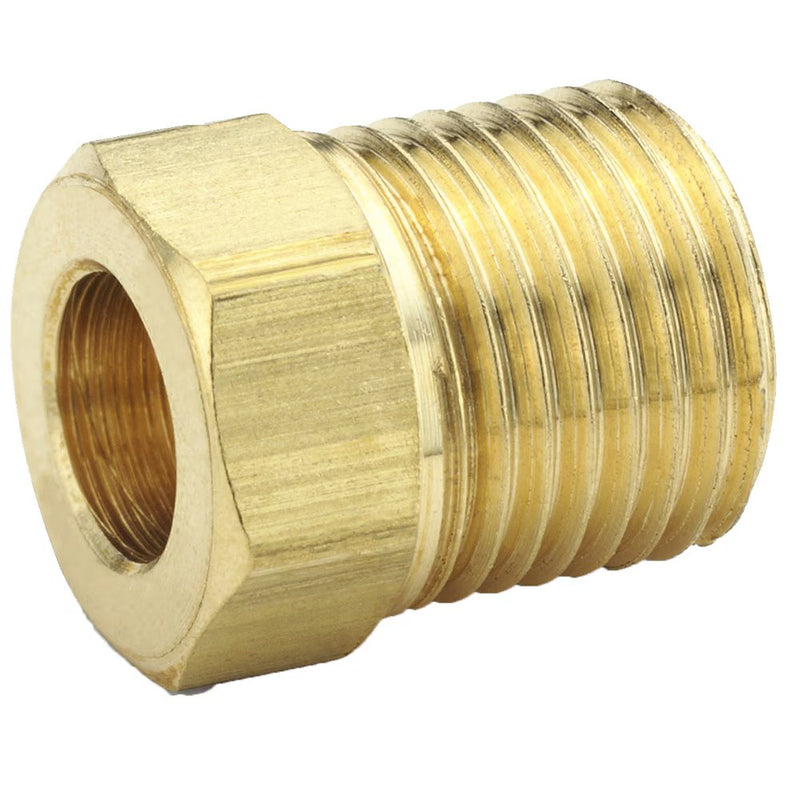

41IF-8 by Parker | Inverted Flare Fittings | 1/2" Inverted Flare | 3/4" Hex | .74" Length | Nut | Straight | Brass | Pack of 25

Save $141.24

$353.10

$353.10 - $353.10

$353.10

$211.86

$211.86 - $211.86

$211.86

by Parker Hannifin
Inverted Flared Fittings:Nut 41IF

Package Quantity: 25 Units

Quantity

Specifications for Variant SKU: 41IF-8 Parker \| 25 \|
Series:	41IF Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, UL Listed

Specification:
Product Features:	All brass construction UL listed for flammable liquid and gas Meets functional requirements of SAE J512 Steel nut for economy
Markets:	Air Conditioning Marine Mobile Engines
Applications:	Refrigerant Lines Brake Lines Fuel Lines
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Aluminum Welded Steel Hydraulic Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	L	D
41IF-2	1/8"	5/16"-28	5/16"	.52"	.133"
41IF-3	3/16"	3/8"-24	3/8"	.56"	.196"
41IF-4	1/4"	7/16"-24	7/16"	.56"	.259"
41IF-5	5/16"	1/2"-20	1/2"	.62"	.321"
41IF-6	3/8"	5/8"-18	5/8"	.66"	.384"
41IF-8	1/2"	3/4"-18	3/4"	.74"	.508"
41IF-10	5/8"	7/8"-18	7/8"	.80"	.633"
41IFS-3 (Steel Material)	3/16"	3/8"-24	3/8"	.56"	.196"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
