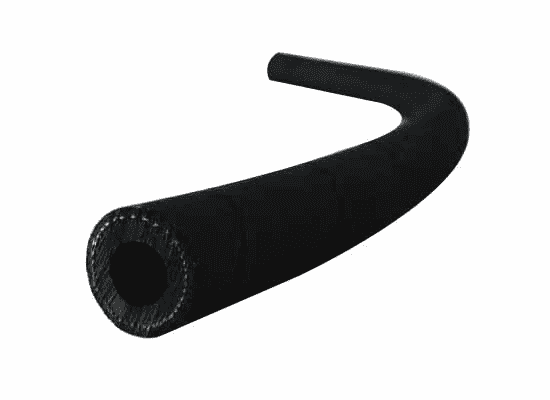

4312-0051-100 by Jason Industrial | 4312 Series | 2-Ply Sandblast Hose | 150 PSI | 1/2" ID | 1.06" OD | Black | NR/BR | 100ft

Save $3.33

$268.66

$268.66 - $268.66

$268.66

$265.33

$265.33 - $265.33

$265.33

Jason Industrial Inc. Hose - Material Handling Hose - 4312 2-Ply Sandblast Hose - Black

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4312-0051-100 Jason \| 100 \|
Series:	4312 Series
Hose Color(s):	Black
Internal Diameter:	0.50in
Outer Diameter:	1.06in
Tubing Construction:	Natural Rubber/SBR Blend
Cover Construction:	Natural Rubber/SBR Blend
Special Properties:	Conductive Tube, Pin Pricked Hose Cover, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	For conveyance of highly abrasive materials in sandblasting/cleaning and general maintenance in construction, shipyards, power plants and equipment rental	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR/NR Blend, 1/4" Thick, Black, Static Dissipating
Reinforcement:	Two-ply Synthetic Fabric	Cover:	SBR/NR Blend, Pin-pricked
Temperature Range:	-25 deg. F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Tube compounds are static-dissipating Highly abrasion resistant tube that will handle any blast grit Cover is abrasion and weather resistant

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4312-0050-050	1/2"	12.70mm	1.00"	25.40mm	2	150 PSI	10.35 BAR	N/A	0.31 lb./ft.	0.46 KG/m	5.00"	127.00mm	50ft
4312-0051-050	1/2"	12.70mm	1.06"	26.99mm	2	150 PSI	10.35 BAR	N/A	0.33 lb./ft.	0.49 KG/m	5.00"	127.00mm	50ft
4312-0051-100	1/2"	12.70mm	1.06"	26.99mm	2	150 PSI	10.35 BAR	N/A	0.33 lb./ft.	0.49 KG/m	5.00"	127.00mm	100ft
4312-0052-050	1/2"	12.70mm	1.13"	28.58mm	2	150 PSI	10.35 BAR	N/A	0.38 lb./ft.	0.57 KG/m	5.00"	127.00mm	50ft
4312-0075-050	3/4"	19.05mm	1.50"	38.10mm	2	150 PSI	10.35 BAR	N/A	0.60 lb./ft.	0.89 KG/m	7.50"	190.00mm	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
