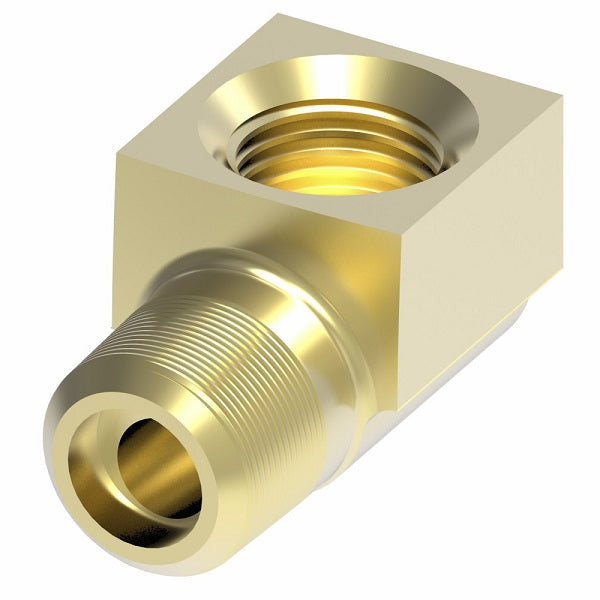

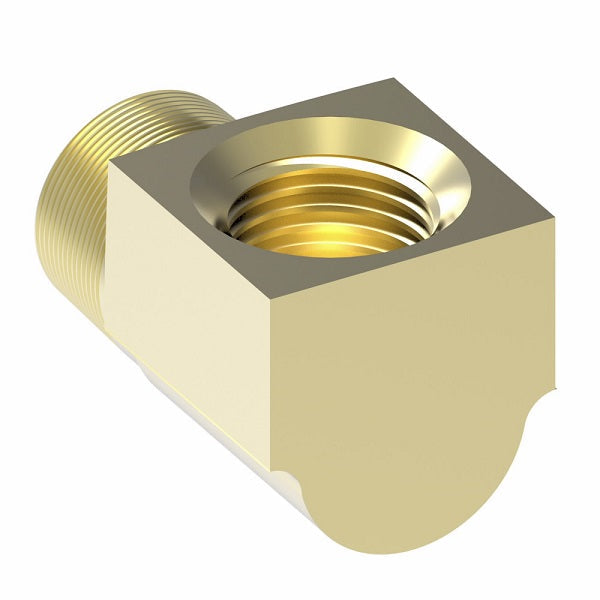

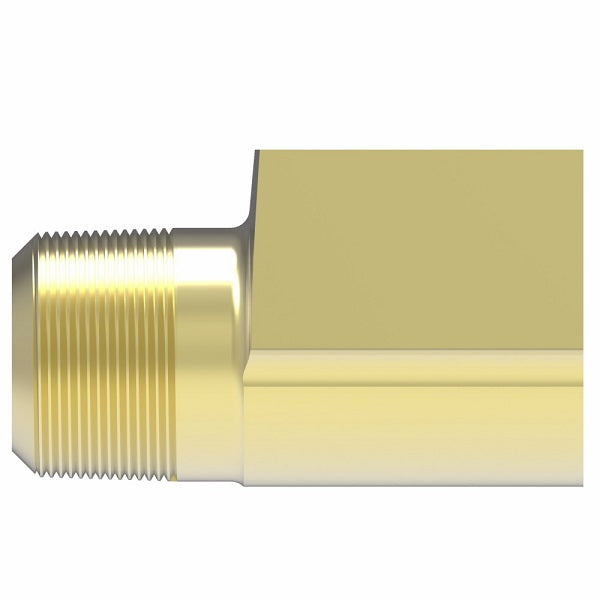

Name: 431X4 by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter | 1/8" Male NPTF x 1/4" Female SAE Inverted Flare | Brass
Brand: Danfoss/Eaton
SKU: 431X4 Danfoss
Price: 23.16 USD
Availability: InStock

$23.16 - $23.16

$23.16

$23.16 - $23.16

$23.16

Aeroquip® by Danfoss
Male NPTF/Inverted Flare Adapter
Male NPTF x Female Inverted Flare
90° Elbow

Quantity

Specifications for Variant SKU: 431X4 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Male NPTF, 1/4in Female Inverted Flare
Material(s):	Brass

Overview:
Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends.
Used With:
Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
Ref. SAE No. 040202 Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread Size	5/16-28	3/8-24	7/16-24	1/2-20	5/8-18	11/16-18	3/4-18	7/8-18	1-1/16-16	1-3/16-16	1-5/16-16


Part Number Brass	Part Number Brass with Sealant	Tube O.D.	Male Pipe Thread	D	D1	L	L1	M	X
402X2	-	1/8"	1/8"	0.78"	0.116"	0.80"	0.47"	0.27"	0.42"
402X3	-	3/16"	1/8"	0.125"	0.125"	0.85"	0.47"	0.27"	0.47"
402X4	402X4Z	1/4"	1/8"	0.188"	0.177"	0.92"	0.55"	0.33"	0.53"
431X4*	-	1/4"	1/8"	0.188"	0.062"	0.91"	0.53"	0.33"	0.53"
402X4X4	-	1/4"	1/4"	0.188"	0.188"	1.09"	0.58"	0.28"	0.56"
402X5	402X5Z	5/16"	1/8"	0.219"	0.219"	0.98"	0.67"	0.47"	0.59"
402X5X4	-	5/16"	1/4"	0.219"	0.219"	1.16"	0.75"	0.45"	0.59"
402X6X2	-	3/8"	1/8"	0.281"	0.219"	1.14"	0.75"	0.54"	0.76"
402X6	402X6Z	3/8"	1/4"	0.281"	0.281"	1.32"	0.82"	0.53"	0.76"
402X6X6	-	3/8"	3/8"	0.281"	0.312"	1.32"	0.84"	0.50"	0.75"
402X8	-	1/2"	3/8"	0.406"	0.375"	1.48"	0.94"	0.59"	0.92"
402X8X8	-	1/2"	1/2"	0.406"	0.406"	1.67"	1.09"	0.66"	0.91"
402X12X8	-	3/4"	1/2"	0.626"	0.531"	2.09"	1.30"	0.85"	1.25"
402X14	-	7/8"	3/4"	0.750"	0.750"	2.12"	1.46"	0.94"	1.38"
402X16	-	1"	1"	0.812"	0.812"	2.44"	1.70"	1.02"	1.50"

* .062 dia. restricted hole through pipe end. Available on special order with any restricted hole size up to .172 dia.
