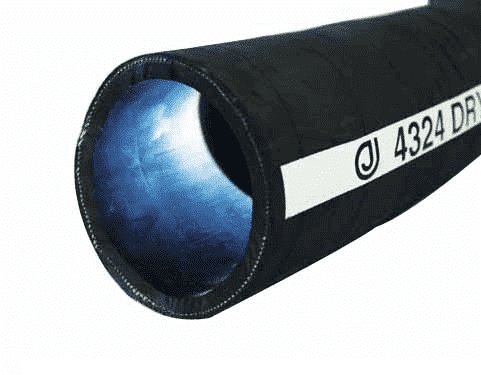

4324-0400-100 Jason Industrial 4324 1/4" Tube Thickness Sand & Dry Cement, Powder Discharge Hose - Black - 75 PSI - 4" ID - 4.84" OD - 100ft

4324-0400-100 by Jason Industrial | 4324 Series | 1/4" Tube Thickness Sand & Dry Cement, Powder Discharge Hose | 75 PSI | 4" ID | 4.84" OD | Black | NR/BR | 100ft

Save $15.56 Save $15.56
$1,492.89
$1,492.89 - $1,492.89
$1,492.89
$1,477.33
$1,477.33 - $1,477.33
$1,477.33

Jason Industrial Inc. Hose - Material Handling Hose - Sand & Dry Cement, Powder Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4324-0400-100 Jason | 100 |
Series: 4324 Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.84in
Tubing Construction: Natural Rubber/SBR Blend
Special Properties: Conductive Tube, Static Dissipating Tube

SPECIFICATIONS

Application: For pneumatic discharge of dry powders, dry cement or other dry materials. Also used for sand/water mix applications on fracking sites SAE Rating: N/A
Other Ratings: N/A Tube: NR/SBR Blend, Black and Static-dissipating
Reinforcement: Two-ply Synthetic Fabric Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4322, 4323 or 4324 DRY BULK DISCHARGE ID Tube WP 75 PSI 5.17 BAR. White mylar longitudinal stripe.
Other Features:
  • Special static dissipating tube compound
  • Weather and ozone resistant
  • High abrasion resistant tube resists cutting/gouging
  • Can be rolled for transport and storage
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
1/8" Tube Thickness
4322-0400-100 4" 101.60mm 4.48" 113.79mm 2 75 PSI 5.17 BAR N/A 1.60 lb./ft. 2.38 KG/m 40.00" 1016.00mm 100ft
4322-0500-100 5" 127.00mm 5.46" 138.68mm 2 75 PSI 5.17 BAR N/A 1.88 lb./ft. 2.80 KG/m 50.00" 1270.00mm 100ft
3/16" Tube Thickness
4323-0400-100 4" 101.60mm 4.68" 118.87mm 2 75 PSI 5.17 BAR N/A 2.42 lb./ft. 3.60 KG/m 40.00" 1016.00mm 100ft
4323-0500-100 5" 127.00mm 5.68" 144.27mm 2 75 PSI 5.17 BAR N/A 2.92 lb./ft. 4.35 KG/m 50.00" 1270.00mm 100ft
1/4" Tube Thickness
4324-0400-100 4" 101.60mm 4.84" 122.94mm 2 75 PSI 5.17 BAR N/A 3.23 lb./ft. 4.81 KG/m 40.00" 1016.00mm 100ft
4324-0500-100 5" 127.00mm 5.84" 148.34mm 2 75 PSI 5.17 BAR N/A 3.80 lb./ft. 5.65 KG/m 50.00" 1270.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
