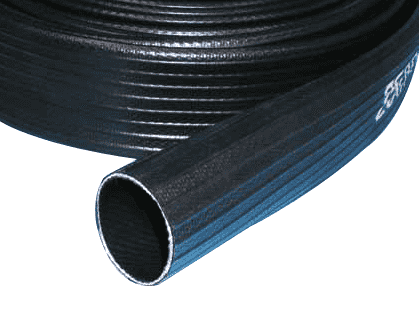

4359-0400-660 by Jason Industrial | 4359 Series | Oil Resistant Discharge Hose | 200 PSI | 4" ID | 0.110" Wall Thickness | Black | Nitrile/PVC | 660ft

4359-0400-660 by Jason Industrial | 4359 Series | Oil Resistant Discharge Hose | 200 PSI | 4" ID | 0.110" Wall Thickness | Black | Nitrile/PVC | 660ft

Save $48.30 Save $48.30
$5,117.10
$5,117.10 - $5,117.10
$5,117.10
$5,068.80
$5,068.80 - $5,068.80
$5,068.80

Jason Industrial Inc. Hose - Water Hose - 4359 Nitrile/PVC Oil Resistant Discharge Hose - Black

Package Quantity: 660 FT

Specifications for Variant SKU: 4359-0400-660 Jason | 660 |
Series: 4359 Series
Hose Color(s): Black
Internal Diameter: 4in
Tubing Construction: Nitrile/PVC Blend
Cover Construction: Nitrile/PVC Blend

SPECIFICATIONS

Application: For use in industrial washdown, irrigation, general dewatering, pump discharge and drainage. SAE Rating: N/A
Other Ratings: N/A Tube: Black, NBR/PVC
Reinforcement: N/A Cover: Black, NBR/PVC
Temperature Range: -20 deg F (-29 deg. C) to +210 deg. F (+99 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Up to 250 PSI (17.24 BAR) working pressure
  • Oil resistant tube and cover
  • Resists heat, cold, ozone and UV light
  • Lightweight and flexible
  • 660 ft. lengths available in 4", 6" and 8" IDs
Part Number I.D. Wall Thickness Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled
4359-0075-050 3/4" 19.05mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.10 lb./ft. 0.15 KG/m 50ft
4359-0075-100 3/4" 19.05mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.10 lb./ft. 0.15 KG/m 100ft
4359-0100-050 1" 25.40mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.14 lb./ft. 0.21 KG/m 50ft
4359-0100-100 1" 25.40mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.14 lb./ft. 0.21 KG/m 100ft
4359-0150-050 1-1/2" 38.10mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.26 lb./ft. 0.39 KG/m 50ft
4359-0150-100 1-1/2" 38.10mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.26 lb./ft. 0.39 KG/m 100ft
4359-0200-050 2" 50.80mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.34 lb./ft. 0.51 KG/m 50ft
4359-0200-100 2" 50.80mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.34 lb./ft. 0.51 KG/m 100ft
4359-0250-050 2-1/2" 63.50mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.47 lb./ft. 0.70 KG/m 50ft
4359-0250-100 2-1/2" 63.50mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.47 lb./ft. 0.70 KG/m 100ft
4359-0300-050 3" 76.20mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.65 lb./ft. 0.97 KG/m 50ft
4359-0300-100 3" 76.20mm 0.110" 2.79mm N/A 250 PSI 17.25 BAR N/A 0.65 lb./ft. 0.97 KG/m 100ft
4359-0400-050 4" 102.40mm 0.110" 2.79mm N/A 200 PSI 13.79 BAR N/A 0.83 lb./ft. 1.24 KG/m 50ft
4359-0400-100 4" 102.40mm 0.110" 2.79mm N/A 200 PSI 13.79 BAR N/A 0.83 lb./ft. 1.24 KG/m 100ft
4359-0400-660 4" 152.40mm 0.110" 2.79mm N/A 200 PSI 13.79 BAR N/A 0.83 lb./ft. 1.24 KG/m 660ft
4359-0600-050 6" 152.40mm 0.110" 2.79mm N/A 150 PSI 10.35 BAR N/A 1.60 lb./ft. 2.39 KG/m 50ft
4359-0600-100 6" 152.40mm 0.110" 2.79mm N/A 150 PSI 10.35 BAR N/A 1.60 lb./ft. 2.39 KG/m 100ft
4359-0600-660 6" 152.40mm 0.110" 2.79mm N/A 150 PSI 10.35 BAR N/A 1.60 lb./ft. 2.39 KG/m 660ft
4359-0800-050 8" 204.80mm 0.110" 2.79mm N/A 150 PSI 10.35 BAR N/A 2.30 lb./ft. 3.43 KG/m 50ft
4359-0800-100 8" 204.80mm 0.110" 2.79mm N/A 150 PSI 10.35 BAR N/A 2.30 lb./ft. 3.43 KG/m 100ft
4359-0800-660 8" 204.80mm 0.110" 2.79mm N/A 150 PSI 10.35 BAR N/A 2.30 lb./ft. 3.43 KG/m 660ft
4359-1000-050 10" 254.00mm 0.160" 4.06mm N/A 150 PSI 10.35 BAR N/A 3.20 lb./ft. 4.77 KG/m 50ft
4359-1000-100 10" 254.00mm 0.160" 4.06mm N/A 150 PSI 10.35 BAR N/A 3.20 lb./ft. 4.77 KG/m 100ft
4359-1200-050 12" 304.80mm 0.170" 4.32mm N/A 150 PSI 10.35 BAR N/A 3.50 lb./ft. 5.22 KG/m 50ft
4359-1200-100 12" 304.80mm 0.170" 4.32mm N/A 150 PSI 10.35 BAR N/A 3.50 lb./ft. 5.22 KG/m 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
