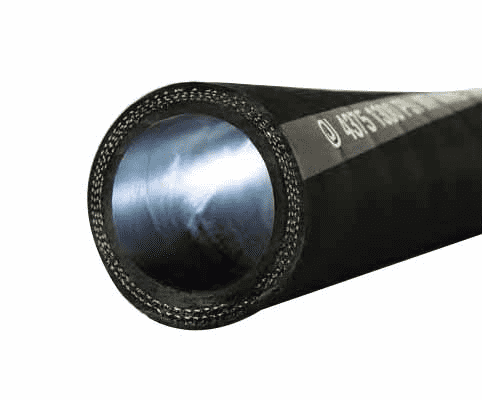

4375-0300-050 by Jason Industrial | 4375 Series | Concrete Placement Hose | 1300 PSI | 3" ID | 4.02" OD | Black | Elastomers | 50ft

4375-0300-050 by Jason Industrial | 4375 Series | Concrete Placement Hose | 1300 PSI | 3" ID | 4.02" OD | Black | Elastomers | 50ft

Save $13.70 Save $13.70
$1,371.03
$1,371.03 - $1,371.03
$1,371.03
$1,357.33
$1,357.33 - $1,357.33
$1,357.33

Jason Industrial Inc. Hose - Material Handling Hose - 4375 Concrete Placement Hose - 1300 PSI - Black

Package Quantity: 50 FT

Specifications for Variant SKU: 4375-0300-050 Jason | 50 |
Series: 4375 Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 4.02in
Tubing Construction: Elastomer Blend
Cover Construction: Elastomer Blend
Special Properties: Static Dissipating Cover, Static Dissipating Tube

SPECIFICATIONS

Application: For very high pressure concrete placement applications SAE Rating: N/A
Other Ratings: N/A Tube: Blend of Synthetic and Natural Elastomers, Black, Smooth, Anti-static
Reinforcement: 2 or 4-spiral High Tensile Steel Wire Cover: Blend of Synthetic and Natural Elastomers, Black, Smooth, Cloth Impression, Anti-static
Temperature Range: -22 deg. F (-30 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4375 1300 PSI WP WIRE CONCRETE PLACEMENT. Clear stripe with reversed lettering
Other Features:
  • Tube and cover compounds are anti-static
  • Tube is abrasion resistant
  • Cover is abrasion, ozone and weather resistant
  • Designed for high kink resistance and perfect flow
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4375-0200-050 2" 50.80mm 2.87" 73.00mm 2 1300 PSI 89.6 BAR N/A 1.95 lb./ft. 2.91 KG/m 16.10" 410.00mm 50ft
4375-0200-100 2" 50.80mm 2.87" 73.00mm 2 1300 PSI 89.6 BAR N/A 1.95 lb./ft. 2.91 KG/m 16.10" 410.00mm 100ft
4375-0300-050 3" 76.20mm 4.02" 102.00mm 4 1300 PSI 89.6 BAR N/A 3.63 lb./ft. 5.40 KG/m 24.00" 610.00mm 50ft
4375-0300-100 3" 76.20mm 4.02" 102.00mm 4 1300 PSI 89.6 BAR N/A 3.63 lb./ft. 5.40 KG/m 24.00" 610.00mm 100ft
4375-0400-050 4" 101.60mm 5.12" 130.00mm 4 1300 PSI 89.6 BAR N/A 5.31 lb./ft. 7.90 KG/m 32.30" 820.00mm 50ft
4375-0400-100 4" 101.60mm 5.12" 130.00mm 4 1300 PSI 89.6 BAR N/A 5.31 lb./ft. 7.90 KG/m 32.30" 820.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
