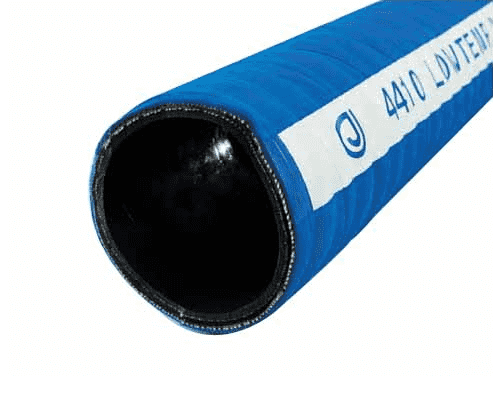

4410-0300-100 by Jason Industrial | 4410 Series | Low Temp Suction Hose | Corrugated | 150 PSI | 3" ID | 3.55" OD | Blue | Petroleum | 100ft

Save $24.05

$2,462.72

$2,462.72 - $2,462.72

$2,462.72

$2,438.67

$2,438.67 - $2,438.67

$2,438.67

Jason Industrial Inc. Hose - Material Handling Hose - 4410 Blue Low Temp Petroleum Suction Hose - Corrugated

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4410-0300-100 Jason \| 100 \|
Series:	4410 Series
Hose Color(s):	Blue
Internal Diameter:	3in
Outer Diameter:	3.55in
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	The transfer of petroleum products, including gasoline under pressure or gravity flow	SAE Rating:	N/A
Other Ratings:	Tube: ARPM Class A Cover: ARPM Class B	Tube:	Nitrile, Black, Smooth, ARPM Class A
Reinforcement:	Two-ply Synthetic Fabric, Double Wire Helix	Cover:	CR, Blue, Corrugated, ARPM Class B
Temperature Range:	-65 deg. F (-55 deg. C) to +180 deg. F (+82 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4410 LOW TEMP PETROLEUM SUCTION -65°F (-55°C) 150 PSI WP 10.35 BAR. White mylar longitudinal stripe
Cover is resistant to weathering, abrasion, and the exposure to oil Compounded to resist extreme cold temperatures to -65 deg. F Remains flexible, even under extreme cold temperatures All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4410-0300-100	3"	76.20mm	3.55"	90.17mm	2	150 PSI	10.35 BAR	29.0 inHg	1.83 lb./ft.	2.72 KG/m	6.00"	151.20mm	100ft
4410-0400-100	4"	101.60mm	4.59"	116.59mm	2	150 PSI	10.35 BAR	29.0 inHg	2.39 lb./ft.	3.56 KG/m	9.00"	226.80mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
