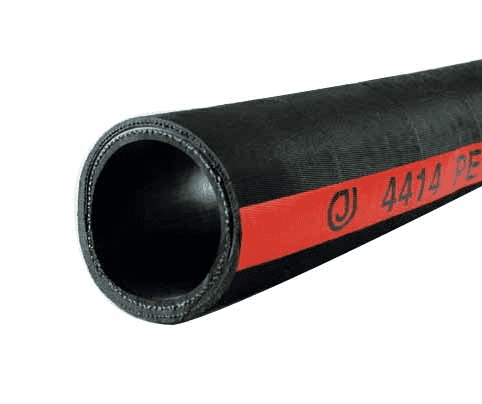

4414-0600-100 by Jason Industrial | 4414 Series | Petroleum Suction Hose | 300 PSI | 6" ID | 6.91" OD | Black | Nitrile | 100ft

4414-0600-100 by Jason Industrial | 4414 Series | Petroleum Suction Hose | 300 PSI | 6" ID | 6.91" OD | Black | Nitrile | 100ft

Save $60.34 Save $60.34
$6,067.01
$6,067.01 - $6,067.01
$6,067.01
$6,006.67
$6,006.67 - $6,006.67
$6,006.67

Jason Industrial Inc. Hose - Material Handling Hose - 4414 Nitrile Petroleum Suction Hose - 300 PSI - Black

FREE SHIPPING DOMESTICALLY!

Package Quantity: 100 FT

Specifications for Variant SKU: 4414-0600-100 Jason | 100 |
Series: 4414 Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.91in
Tubing Construction: Nitrile
Cover Construction: Chloroprene

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure and gravity flow SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Dual Wire Helix Cover: CR, ARPM Class B
Temperature Range: -31 deg. F (-35 deg. C) to +176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4414 PETROLEUM SUCTION WP 300 PSI 20.70 BAR. Red mylar longitudinal stripe.
Other Features:
  • HD construction that handles up to 300 PSI applications
  • Cover is resistant to weathering and abrasion
  • Heat and ozone resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4414-0100-100 1" 25.40mm 1.46" 37.08mm 2 300 PSI 20.70 BAR 29.0 inHg 0.53 lb./ft. 0.79 KG/m 3.50" 88.90mm 100ft
4414-0125-100 1-1/4" 31.75mm 1.73" 43.94mm 2 300 PSI 20.70 BAR 29.0 inHg 0.70 lb./ft. 1.04 KG/m 4.00" 101.60mm 100ft
4414-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 300 PSI 20.70 BAR 29.0 inHg 0.92 lb./ft. 1.37 KG/m 5.00" 127.00mm 100ft
4414-0200-100 2" 50.80mm 2.50" 63.50mm 2 300 PSI 20.70 BAR 29.0 inHg 1.27 lb./ft. 1.89 KG/m 8.00" 203.20mm 100ft
4414-0200-200 2" 50.80mm 2.50" 63.50mm 2 300 PSI 20.70 BAR 29.0 inHg 1.27 lb./ft. 1.89 KG/m 8.00" 203.20mm 200ft
4414-0250-100 2-1/2" 63.50mm 3.11" 78.99mm 2 300 PSI 20.70 BAR 29.0 inHg 1.66 lb./ft. 2.47 KG/m 10.00" 254.00mm 100ft
4414-0300-100 3" 76.20mm 3.62" 91.95mm 2 300 PSI 20.70 BAR 29.0 inHg 2.19 lb./ft. 3.26 KG/m 12.00" 304.80mm 100ft
4414-0300-200 3" 76.20mm 3.62" 91.95mm 2 300 PSI 20.70 BAR 29.0 inHg 2.19 lb./ft. 3.26 KG/m 12.00" 304.80mm 200ft
4414-0400-100 4" 101.60mm 4.65" 118.11mm 2 300 PSI 20.70 BAR 29.0 inHg 2.89 lb./ft. 4.30 KG/m 17.00" 431.80mm 100ft
4414-0400-200 4" 101.60mm 4.65" 118.11mm 2 300 PSI 20.70 BAR 29.0 inHg 2.89 lb./ft. 4.30 KG/m 17.00" 431.80mm 200ft
4414-0600-100 6" 152.40mm 6.91" 175.51mm 2 300 PSI 20.70 BAR 29.0 inHg 6.47 lb./ft. 9.96 KG/m 27.00" 685.80mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
