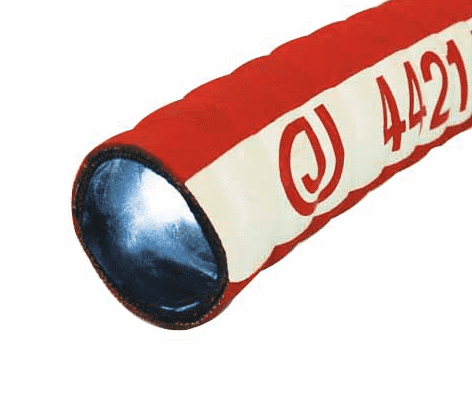

4421-0200-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 2" ID | 2.48" OD | Red | 100ft

4421-0200-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 2" ID | 2.48" OD | Red | 100ft

Save $9.50 Save $9.50
$974.83
$974.83 - $974.83
$974.83
$965.33
$965.33 - $965.33
$965.33

Jason Industrial Inc. Hose - Material Handling Hose - 4421 Tank Truck Hose - Red Corrugated

Package Quantity: 100 FT

Specifications for Variant SKU: 4421-0200-100 Jason | 100 |
Series: 4421 Series
Hose Color(s): Red
Internal Diameter: 2in
Outer Diameter: 2.48in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure, gravity flow and tank farms at oil/gas drilling sites SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, ARPM Class A
Reinforcement: Two Synthetic Plies, Wire Helix Cover: CR, ARPM Class B, Corrugated, Red
Temperature Range: -30 deg. F (-34 deg. C) to +180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4421 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Increased flexibility due to the corrugated cover
  • Lightweight, easier to handle
  • Cover is resistant to weathering and abrasion
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4421-0200-100 2" 50.80mm 2.48" 63.00mm 2 150 PSI 10.35 BAR 29.0 inHg 1.18 lb./ft. 1.76 KG/m 4.00" 101.60mm 100ft
4421-0300-100 3" 76.20mm 3.50" 89.00mm 2 150 PSI 10.35 BAR 29.0 inHg 1.99 lb./ft. 2.96 KG/m 6.00" 152.40mm 100ft
4421-0400-100 4" 101.60mm 4.57" 116.00mm 2 150 PSI 10.35 BAR 29.0 inHg 2.66 lb./ft. 3.96 KG/m 9.00" 228.60mm 100ft
4421-0600-100 6" 152.40mm 6.77" 172.00mm 2 150 PSI 10.35 BAR 29.0 inHg 6.30 lb./ft. 9.41 KG/m 25.00" 637.50mm 100ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
