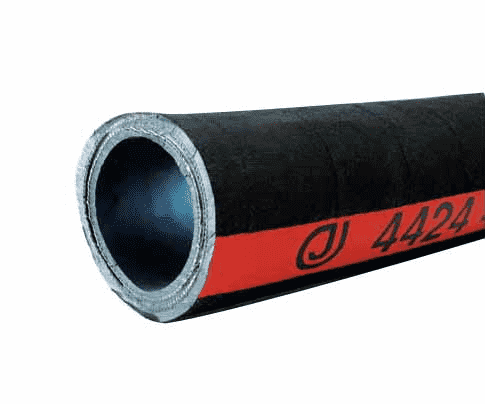

4424-0300-200 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 3" ID | 3.88" OD | Black | Nitrile | 200ft

4424-0300-200 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 3" ID | 3.88" OD | Black | Nitrile | 200ft

Save $48.06 Save $48.06
$4,904.06
$4,904.06 - $4,904.06
$4,904.06
$4,856.00
$4,856.00 - $4,856.00
$4,856.00

Jason Industrial Inc. Hose - Material Handling Hose - 4424 Nitrile Petroleum Suction Hose - 400 PSI - Black

Package Quantity: 200 FT

Specifications for Variant SKU: 4424-0300-200 Jason | 200 |
Series: 4424 Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.88in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure or gravity flow (suction or discharge) SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Dual Wire Helix Cover: CR, Black, ARPM Class B
Temperature Range: -31 deg. F (-35 deg. C) to +158 deg. F (+70 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4424 PETROLEUM SUCTION WP 400 PSI 27.6 BAR. Red mylar longitudinal stripe
Other Features:
  • HD construction that handles up to 400 PSI applications
  • Cover is resistant to weathering and abrasion
  • Heat, sea water and ozone resistant
  • All sizes are full vaccum
  • Construction is with high tensile strength textile
  • Dual copper wires to ground the hose
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4424-0200-100 2" 50.80mm 2.82" 71.63mm 2 400 PSI 27.56 BAR 29.0 inHg 1.89 lb./ft. 2.81 KG/m 12.00" 304.80mm 100ft
4424-0200-200 2" 50.80mm 2.82" 71.63mm 2 400 PSI 27.56 BAR 29.0 inHg 1.89 lb./ft. 2.81 KG/m 12.00" 304.80mm 200ft
4424-0300-100 3" 76.20mm 3.88" 98.55mm 2 400 PSI 27.56 BAR 29.0 inHg 2.95 lb./ft. 4.39 KG/m 20.00" 508.00mm 100ft
4424-0300-200 3" 76.20mm 3.88" 98.55mm 2 400 PSI 27.56 BAR 29.0 inHg 2.95 lb./ft. 4.39 KG/m 20.00" 508.00mm 200ft
4424-0400-100 4" 101.60mm 4.92" 124.50mm 2 400 PSI 27.56 BAR 29.0 inHg 3.85 lb./ft. 5.72 KG/m 30.00" 762.00mm 100ft
4424-0400-200 4" 101.60mm 4.92" 124.50mm 2 400 PSI 27.56 BAR 29.0 inHg 3.85 lb./ft. 5.72 KG/m 30.00" 762.00mm 200ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
