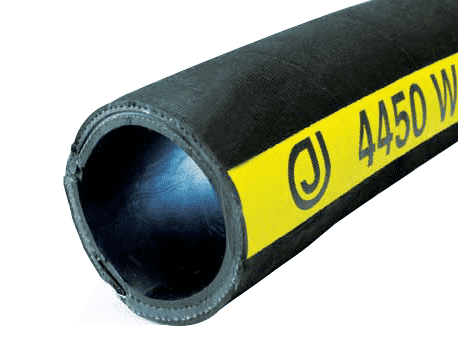

4450-0400-200 by Jason Industrial | 4450 Series | Rubber Water Suction Hose | 150 PSI | 4" ID | 4.53" OD | Black | EPDM | 200ft

Save $23.38

$2,431.38

$2,431.38 - $2,431.38

$2,431.38

$2,408.00

$2,408.00 - $2,408.00

$2,408.00

Jason Industrial Inc. Hose - Water Hose - 4450 Rubber Water Suction Hose

Package Quantity: 200 FT

Quantity

Specifications for Variant SKU: 4450-0400-200 Jason \| 200 \|
Series:	4450 Series
Hose Color(s):	Black
Internal Diameter:	4in
Outer Diameter:	4.53in
Tubing Construction:	EPDM
Cover Construction:	EPDM
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	For suction, discharge or gravity flow of water in construction, mining, oil exploration, agriculture and equipment rental.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	EPDM Blend, Smooth, Black
Reinforcement:	Two-ply or Four-ply Synthetic Fabric with a Double Wire Helix	Cover:	EPDM Blend, Fabric Impression
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4450 WATER SUCTION WP PSI (BAR). Yellow mylar longitudinal stripe
Resistant to water-based ag fertilizers Resistant to salt water Cover is abrasion and weather resistant Flexible and economical

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4450-0100-100	1"	25.40mm	1.42"	36.00mm	2	150 PSI	10.35 BAR	28.0 inHg	0.50 lb./ft.	0.75 KG/m	3.75"	95.00mm	100ft
4450-0125-100	1-1/4"	31.75mm	1.70"	43.18mm	2	150 PSI	10.35 BAR	28.0 inHg	0.75 lb./ft.	1.12 KG/m	6.00"	152.40mm	100ft
4450-0150-100	1-1/2"	38.10mm	1.96"	49.78mm	2	150 PSI	10.35 BAR	28.0 inHg	0.80 lb./ft.	1.19 KG/m	6.50"	165.10mm	100ft
4450-0200-100	2"	50.80mm	2.49"	63.25mm	2	150 PSI	10.35 BAR	28.0 inHg	1.11 lb./ft.	1.65 KG/m	8.00"	203.20mm	100ft
4450-0200-200	2"	50.80mm	2.49"	63.25mm	2	150 PSI	10.35 BAR	28.0 inHg	1.11 lb./ft.	1.65 KG/m	8.00"	203.20mm	200ft
4450-0250-100	2-1/2"	63.50mm	2.99"	75.95mm	2	150 PSI	10.35 BAR	28.0 inHg	1.75 lb./ft.	2.60 KG/m	10.00"	254.00mm	100ft
4450-0300-100	3"	76.20mm	3.50"	88.90mm	2	150 PSI	10.35 BAR	28.0 inHg	2.24 lb./ft.	3.33 KG/m	12.00"	304.80mm	100ft
4450-0300-200	3"	76.20mm	3.50"	88.90mm	2	150 PSI	10.35 BAR	28.0 inHg	2.24 lb./ft.	3.33 KG/m	12.00"	304.80mm	200ft
4450-0400-100	4"	101.60mm	4.53"	115.06mm	2	150 PSI	10.35 BAR	28.0 inHg	2.79 lb./ft.	4.15 KG/m	18.00"	457.20mm	100ft
4450-0400-200	4"	101.60mm	4.53"	115.06mm	2	150 PSI	10.35 BAR	28.0 inHg	2.79 lb./ft.	4.15 KG/m	18.00"	457.20mm	200ft
4450-0500-100	5"	127.00mm	5.68"	144.27mm	2	150 PSI	10.35 BAR	28.0 inHg	3.25 lb./ft.	4.84 KG/m	26.00"	660.40mm	100ft
4450-0600-020	6"	152.40mm	6.54"	166.12mm	2	150 PSI	10.35 BAR	28.0 inHg	5.75 lb./ft.	8.56 KG/m	31.00"	787.40mm	20ft
4450-0600-050	6"	152.40mm	6.54"	166.12mm	2	150 PSI	10.35 BAR	28.0 inHg	5.75 lb./ft.	8.56 KG/m	31.00"	787.40mm	50ft
4450-0600-100	6"	152.40mm	6.54"	166.12mm	2	150 PSI	10.35 BAR	28.0 inHg	5.75 lb./ft.	8.56 KG/m	31.00"	787.40mm	100ft
4450-0800-020	8"	203.20mm	8.79"	223.27mm	4	100 PSI	6.89 BAR	28.0 inHg	6.59 lb./ft.	9.81 KG/m	42.00"	1066.80mm	20ft
4450-1000-020	10"	254.00mm	10.91"	277.11mm	4	75 PSI	5.17 BAR	28.0 inHg	10.25 lb./ft.	15.25 KG/m	50.00"	1270.00mm	20ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
