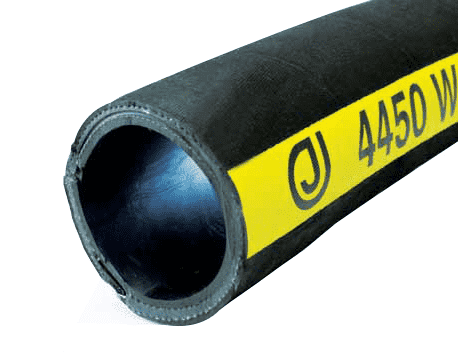

4450-0500-100 by Jason Industrial | 4450 Series | Rubber Water Suction Hose | 150 PSI | 5" ID | 5.68" OD | Black | EPDM | 100ft

Save $19.74

$2,013.07

$2,013.07 - $2,013.07

$2,013.07

$1,993.33

$1,993.33 - $1,993.33

$1,993.33

Jason Industrial Inc. Hose - Water Hose - 4450 Rubber Water Suction Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4450-0500-100 Jason \| 100 \|
Series:	4450 Series
Hose Color(s):	Black
Internal Diameter:	5in
Outer Diameter:	5.68in
Tubing Construction:	EPDM
Cover Construction:	EPDM
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	For suction, discharge or gravity flow of water in construction, mining, oil exploration, agriculture and equipment rental.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	EPDM Blend, Smooth, Black
Reinforcement:	Two-ply or Four-ply Synthetic Fabric with a Double Wire Helix	Cover:	EPDM Blend, Fabric Impression
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4450 WATER SUCTION WP PSI (BAR). Yellow mylar longitudinal stripe
Resistant to water-based ag fertilizers Resistant to salt water Cover is abrasion and weather resistant Flexible and economical

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4450-0100-100	1"	25.40mm	1.42"	36.00mm	2	150 PSI	10.35 BAR	28.0 inHg	0.50 lb./ft.	0.75 KG/m	3.75"	95.00mm	100ft
4450-0125-100	1-1/4"	31.75mm	1.70"	43.18mm	2	150 PSI	10.35 BAR	28.0 inHg	0.75 lb./ft.	1.12 KG/m	6.00"	152.40mm	100ft
4450-0150-100	1-1/2"	38.10mm	1.96"	49.78mm	2	150 PSI	10.35 BAR	28.0 inHg	0.80 lb./ft.	1.19 KG/m	6.50"	165.10mm	100ft
4450-0200-100	2"	50.80mm	2.49"	63.25mm	2	150 PSI	10.35 BAR	28.0 inHg	1.11 lb./ft.	1.65 KG/m	8.00"	203.20mm	100ft
4450-0200-200	2"	50.80mm	2.49"	63.25mm	2	150 PSI	10.35 BAR	28.0 inHg	1.11 lb./ft.	1.65 KG/m	8.00"	203.20mm	200ft
4450-0250-100	2-1/2"	63.50mm	2.99"	75.95mm	2	150 PSI	10.35 BAR	28.0 inHg	1.75 lb./ft.	2.60 KG/m	10.00"	254.00mm	100ft
4450-0300-100	3"	76.20mm	3.50"	88.90mm	2	150 PSI	10.35 BAR	28.0 inHg	2.24 lb./ft.	3.33 KG/m	12.00"	304.80mm	100ft
4450-0300-200	3"	76.20mm	3.50"	88.90mm	2	150 PSI	10.35 BAR	28.0 inHg	2.24 lb./ft.	3.33 KG/m	12.00"	304.80mm	200ft
4450-0400-100	4"	101.60mm	4.53"	115.06mm	2	150 PSI	10.35 BAR	28.0 inHg	2.79 lb./ft.	4.15 KG/m	18.00"	457.20mm	100ft
4450-0400-200	4"	101.60mm	4.53"	115.06mm	2	150 PSI	10.35 BAR	28.0 inHg	2.79 lb./ft.	4.15 KG/m	18.00"	457.20mm	200ft
4450-0500-100	5"	127.00mm	5.68"	144.27mm	2	150 PSI	10.35 BAR	28.0 inHg	3.25 lb./ft.	4.84 KG/m	26.00"	660.40mm	100ft
4450-0600-020	6"	152.40mm	6.54"	166.12mm	2	150 PSI	10.35 BAR	28.0 inHg	5.75 lb./ft.	8.56 KG/m	31.00"	787.40mm	20ft
4450-0600-050	6"	152.40mm	6.54"	166.12mm	2	150 PSI	10.35 BAR	28.0 inHg	5.75 lb./ft.	8.56 KG/m	31.00"	787.40mm	50ft
4450-0600-100	6"	152.40mm	6.54"	166.12mm	2	150 PSI	10.35 BAR	28.0 inHg	5.75 lb./ft.	8.56 KG/m	31.00"	787.40mm	100ft
4450-0800-020	8"	203.20mm	8.79"	223.27mm	4	100 PSI	6.89 BAR	28.0 inHg	6.59 lb./ft.	9.81 KG/m	42.00"	1066.80mm	20ft
4450-1000-020	10"	254.00mm	10.91"	277.11mm	4	75 PSI	5.17 BAR	28.0 inHg	10.25 lb./ft.	15.25 KG/m	50.00"	1270.00mm	20ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
