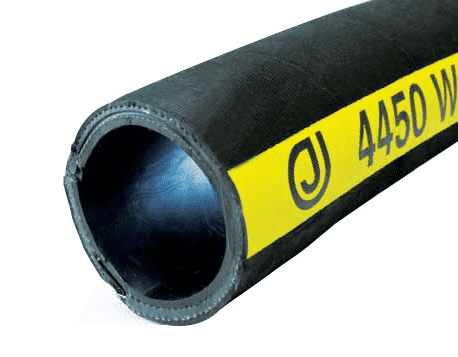

4450-0800-020 by Jason Industrial | 4450 Series | Rubber Water Suction Hose | 100 PSI | 8" ID | 8.79" OD | Black | EPDM | 20ft

4450-0800-020 by Jason Industrial | 4450 Series | Rubber Water Suction Hose | 100 PSI | 8" ID | 8.79" OD | Black | EPDM | 20ft

Save $8.56 Save $8.56
$848.56
$848.56 - $848.56
$848.56
$840.00
$840.00 - $840.00
$840.00

Jason Industrial Inc. Hose - Water Hose - 4450 Rubber Water Suction Hose

Package Quantity: 20 FT

Specifications for Variant SKU: 4450-0800-020 Jason | 20 |
Series: 4450 Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 8.79in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Outer Helix Protection





SPECIFICATIONS

Application: For suction, discharge or gravity flow of water in construction, mining, oil exploration, agriculture and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM Blend, Smooth, Black
Reinforcement: Two-ply or Four-ply Synthetic Fabric with a Double Wire Helix Cover: EPDM Blend, Fabric Impression
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4450 WATER SUCTION WP PSI (BAR). Yellow mylar longitudinal stripe
Other Features:
  • Resistant to water-based ag fertilizers
  • Resistant to salt water
  • Cover is abrasion and weather resistant
  • Flexible and economical
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4450-0100-100 1" 25.40mm 1.42" 36.00mm 2 150 PSI 10.35 BAR 28.0 inHg 0.50 lb./ft. 0.75 KG/m 3.75" 95.00mm 100ft
4450-0125-100 1-1/4" 31.75mm 1.70" 43.18mm 2 150 PSI 10.35 BAR 28.0 inHg 0.75 lb./ft. 1.12 KG/m 6.00" 152.40mm 100ft
4450-0150-100 1-1/2" 38.10mm 1.96" 49.78mm 2 150 PSI 10.35 BAR 28.0 inHg 0.80 lb./ft. 1.19 KG/m 6.50" 165.10mm 100ft
4450-0200-100 2" 50.80mm 2.49" 63.25mm 2 150 PSI 10.35 BAR 28.0 inHg 1.11 lb./ft. 1.65 KG/m 8.00" 203.20mm 100ft
4450-0200-200 2" 50.80mm 2.49" 63.25mm 2 150 PSI 10.35 BAR 28.0 inHg 1.11 lb./ft. 1.65 KG/m 8.00" 203.20mm 200ft
4450-0250-100 2-1/2" 63.50mm 2.99" 75.95mm 2 150 PSI 10.35 BAR 28.0 inHg 1.75 lb./ft. 2.60 KG/m 10.00" 254.00mm 100ft
4450-0300-100 3" 76.20mm 3.50" 88.90mm 2 150 PSI 10.35 BAR 28.0 inHg 2.24 lb./ft. 3.33 KG/m 12.00" 304.80mm 100ft
4450-0300-200 3" 76.20mm 3.50" 88.90mm 2 150 PSI 10.35 BAR 28.0 inHg 2.24 lb./ft. 3.33 KG/m 12.00" 304.80mm 200ft
4450-0400-100 4" 101.60mm 4.53" 115.06mm 2 150 PSI 10.35 BAR 28.0 inHg 2.79 lb./ft. 4.15 KG/m 18.00" 457.20mm 100ft
4450-0400-200 4" 101.60mm 4.53" 115.06mm 2 150 PSI 10.35 BAR 28.0 inHg 2.79 lb./ft. 4.15 KG/m 18.00" 457.20mm 200ft
4450-0500-100 5" 127.00mm 5.68" 144.27mm 2 150 PSI 10.35 BAR 28.0 inHg 3.25 lb./ft. 4.84 KG/m 26.00" 660.40mm 100ft
4450-0600-020 6" 152.40mm 6.54" 166.12mm 2 150 PSI 10.35 BAR 28.0 inHg 5.75 lb./ft. 8.56 KG/m 31.00" 787.40mm 20ft
4450-0600-050 6" 152.40mm 6.54" 166.12mm 2 150 PSI 10.35 BAR 28.0 inHg 5.75 lb./ft. 8.56 KG/m 31.00" 787.40mm 50ft
4450-0600-100 6" 152.40mm 6.54" 166.12mm 2 150 PSI 10.35 BAR 28.0 inHg 5.75 lb./ft. 8.56 KG/m 31.00" 787.40mm 100ft
4450-0800-020 8" 203.20mm 8.79" 223.27mm 4 100 PSI 6.89 BAR 28.0 inHg 6.59 lb./ft. 9.81 KG/m 42.00" 1066.80mm 20ft
4450-1000-020 10" 254.00mm 10.91" 277.11mm 4 75 PSI 5.17 BAR 28.0 inHg 10.25 lb./ft. 15.25 KG/m 50.00" 1270.00mm 20ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
