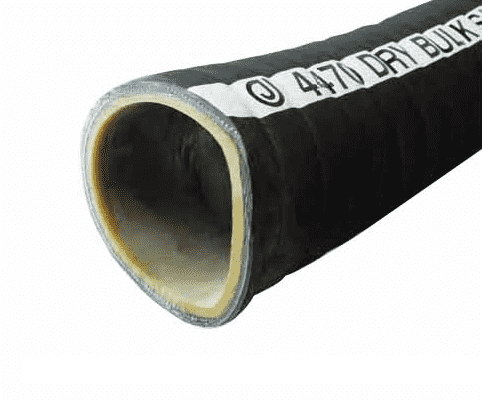

4470-0300-100 by Jason Industrial | 4470 Series | Bulk Material Suction Hose | 75 PSI | 3" ID | 3.66" OD | Black | NR/SBR | 100ft

4470-0300-100 by Jason Industrial | 4470 Series | Bulk Material Suction Hose | 75 PSI | 3" ID | 3.66" OD | Black | NR/SBR | 100ft

Save $19.59 Save $19.59
$2,020.92
$2,020.92 - $2,020.92
$2,020.92
$2,001.33
$2,001.33 - $2,001.33
$2,001.33

Jason Industrial Inc. Hose - Material Handling Hose - 4470 Bulk Material Suction Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4470-0300-100 Jason | 100 |
Series: 4470 Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.66in
Tubing Construction: Gum Rubber
Cover Construction: EPDM
Special Properties: Ground Wire in Hose

SPECIFICATIONS

Application: For suction, discharge or gravity flow of abrasives from manufacturing, sandblast recovery, mineral processing power plants and spill recovery. SAE Rating: N/A
Other Ratings: N/A Tube: 1/4" Pure Gum Rubber, Tan Color
Reinforcement: Two-ply Synthetic Fabric, Wire Helix, Static Wire Cover: EPDM, Fabric Impression, Corrugated, Black
Temperature Range: -40 deg. F (-40 deg. C) to +180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4470 DRY BULK SUCTION WP (PSI) (BAR). White mylar longitudinal stripe
Other Features:
  • 1/4" gum tube is highly abrasion resistant
  • Corrugated to make the hose flexible, even in tight bends
  • Weather and ozone resistant
  • All sizes are full vacuum
  • Static wire, when grounded, dissipates static electricity
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4470-0125-100 1-1/4" 31.75mm 1.81" 46.00mm 2 75 PSI 5.17 BAR 29.0 inHg 0.77 lb./ft. 1.14 KG/m 4.00" 101.60mm 100ft
4470-0150-100 1-1/2" 38.10mm 2.10" 53.34mm 2 75 PSI 5.17 BAR 29.0 inHg 1.11 lb./ft. 1.65 KG/m 4.00" 101.60mm 100ft
4470-0200-100 2" 50.80mm 2.60" 66.04mm 2 75 PSI 5.17 BAR 29.0 inHg 1.30 lb./ft. 1.93 KG/m 12.00" 304.80mm 100ft
4470-0250-100 2-1/2" 63.50mm 3.11" 78.99mm 2 75 PSI 5.17 BAR 29.0 inHg 1.65 lb./ft. 2.46 KG/m 17.00" 431.80mm 100ft
4470-0300-100 3" 76.20mm 3.66" 92.96mm 2 75 PSI 5.17 BAR 29.0 inHg 2.25 lb./ft. 3.35 KG/m 18.00" 457.20mm 100ft
4470-0400-050 4" 101.60mm 4.69" 119.13mm 2 75 PSI 5.17 BAR 29.0 inHg 2.93 lb./ft. 4.36 KG/m 24.00" 609.60mm 50ft
4470-0400-100 4" 101.60mm 4.69" 119.13mm 2 75 PSI 5.17 BAR 29.0 inHg 2.93 lb./ft. 4.36 KG/m 24.00" 609.60mm 100ft
4470-0500-100 5" 127.00mm 5.70" 144.78mm 2 75 PSI 5.17 BAR 29.0 inHg 3.83 lb./ft. 5.70 KG/m 30.00" 762.00mm 100ft
4470-0600-050 6" 152.40mm 6.73" 170.94mm 2 75 PSI 5.17 BAR 29.0 inHg 5.00 lb./ft. 7.44 KG/m 32.00" 812.80mm 50ft
4470-0600-100 6" 152.40mm 6.73" 170.94mm 2 75 PSI 5.17 BAR 29.0 inHg 5.00 lb./ft. 7.44 KG/m 32.00" 812.80mm 100ft
4470-0800-020 8" 203.20mm 9.13" 231.90mm 2 60 PSI 4.14 BAR 29.0 inHg 10.05 lb./ft. 14.96 KG/m 40.00" 1016.00mm 20ft
4470-0800-050 8" 203.20mm 9.13" 231.90mm 2 60 PSI 4.14 BAR 29.0 inHg 10.05 lb./ft. 14.96 KG/m 40.00" 1016.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
