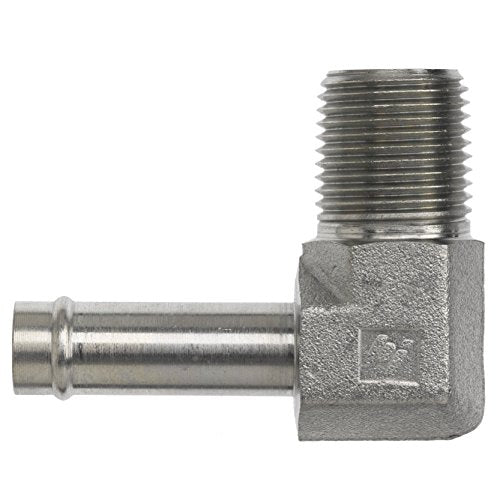

4501-12-08-FG by Brennan Inc. | -12 Hose Barb x -08 Male Pipe | 90° Elbow | Forged Steel

4501-12-08-FG by Brennan Inc. | -12 Hose Barb x -08 Male Pipe | 90° Elbow | Forged Steel

Save $7.93 Save $7.93
$19.82
$19.82 - $19.82
$19.82
$11.89
$11.89 - $11.89
$11.89

Brennan Inc.
Tube Fittings & Adapters: 4501 - Hose Barb x Male Pipe 90° Elbow

Specifications for Variant SKU: 4501-12-08-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 1/2in Male NPTF
Material(s): Steel
Part Number Material B1 Tube O.D. A1 NPTF B1 Drill A2 Drill L Length N Length Y Flats
4501-04-02-FG Forged Steel 1/4" 1/8-27" 0.188" 0.188" 1.810" 0.750" 0.438"
4501-04-04-FG Forged Steel 1/4" 1/4-18" 0.189" 0.281" 1.850" 1.090" 0.625"
4501-06-02-FG Forged Steel 3/8" 1/8-27" 0.297" 0.188" 1.810" 0.900" 0.562"
4501-06-04-FG Forged Steel 3/8" 1/4-18" 0.297" 0.281" 1.870" 1.090" 0.562"
4501-06-06-FG Forged Steel 3/8" 3/8-18" 0.297" 0.406" 2.040" 1.220" 0.750"
4501-08-04-FG Forged Steel 1/2" 1/4-18" 0.406" 0.281" 2.040" 1.220" 0.750"
4501-08-06-FG Forged Steel 1/2" 3/8-18" 0.406" 0.406" 2.040" 1.220" 0.750"
4501-08-08-FG Forged Steel 1/2" 1/2-14" 0.406" 0.531" 2.055" 1.470" 0.875"
4501-08-12-FG Forged Steel 1/2" 3/4-14" 0.406" 0.719" 2.232" 1.594" 1.062"
4501-10-06-FG Forged Steel 5/8" 3/8-18" 0.500" 0.406" 1.968" 1.278" 0.750"
4501-10-08-FG Forged Steel 5/8" 1/2-14" 0.500" 0.531" 2.055" 1.470" 0.875"
4501-10-12-FG Forged Steel 5/8" 3/4-14" 0.500" 0.709" 2.232" 1.595" 1.062"
4501-12-08-FG Forged Steel 3/4" 1/2-14" 0.626" 0.531" 2.060" 1.470" 0.875"
4501-12-12-FG Forged Steel 3/4" 3/4-14" 0.626" 0.719" 2.232" 1.595" 1.062"
4501-12-16-FG Forged Steel 3/4" 1-11-1/2" 0.626" 0.938" 2.382" 1.969" 1.311"
4501-16-08-FG Forged Steel 1" 1/2-14" 0.844" 0.531" 2.320" 1.590" 1.312"
4501-16-12-FG Forged Steel 1" 3/4-14" 0.843" 0.719" 2.360" 1.780" 1.312"
4501-16-16-FG Forged Steel 1" 1-11-1/2" 0.843" 0.938" 2.320" 1.970" 1.312"
4501-16-20-FG Forged Steel 1" 1-1/4-11-1/2" 0.844" 1.250" 2.567" 2.374" 1.625"
4501-20-16-FG Forged Steel 1-1/4" 1-11-1/2" 1.094" 0.938" 2.500" 1.968" 1.625"
4501-20-20-FG Forged Steel 1-1/4" 1-1/4-11-1/2" 1.094" 1.250" 2.570" 2.375" 1.625"
4501-24-16-FG Forged Steel 1-1/2" 1-11-1/2" 1.344" 0.938" 2.650" 2.284" 1.875"
4501-24-20-FG Forged Steel 1-1/2" 1-1/4-11-1/2" 1.344" 1.250 2.650" 2.610" 1.875"
4501-24-24-FG Forged Steel 1-1/2" 1-1/2-11-1/2" 1.343" 1.500" 2.650" 2.640" 1.875"
4501-32-32-FG Forged Steel 2" 2-11-1/2" 1.843" 1.938" 3.000" 3.000" 2.500"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
