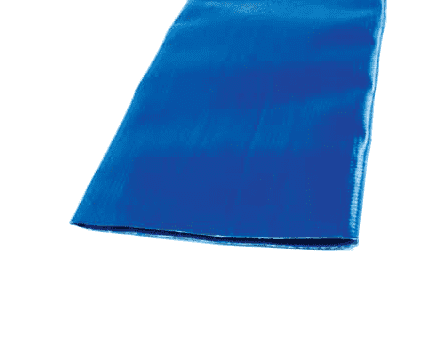

4502-3000-050 by Jason Industrial | 4502 Series | Water Discharge Hose | 70 PSI | 3" ID | 0.062" Wall Thickness | Blue | PVC | 50ft

4502-3000-050 by Jason Industrial | 4502 Series | Water Discharge Hose | 70 PSI | 3" ID | 0.062" Wall Thickness | Blue | PVC | 50ft

Save $0.89 Save $0.89
$66.89
$66.89 - $66.89
$66.89
$66.00
$66.00 - $66.00
$66.00

Jason Industrial Inc. Hose - Water Hose - 4502 Blue PVC Water Discharge Bulk Hose & Assemblies

Package Quantity: 50 FT

Specifications for Variant SKU: 4502-3000-050 Jason | 50 |
Series: 4502 Series
Hose Color(s): Blue
Internal Diameter: 3in
Tubing Construction: PVC
Cover Construction: PVC

SPECIFICATIONS

Application: For general purpose water discharge in construction, agriculture and drip irrigation. SAE Rating: N/A
Other Ratings: N/A Tube: Blue, PVC
Reinforcement: Knitted Polyester Yarn Cover: Blue, PVC
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo WP XX (PSI) ID
Other Features:
  • Light and easy to handle
  • Rolls flat for convenient storage
  • Homogeneous construction eliminates tube and cover separation
  • Maximum bonding is due to the tube and cover being extruded simultaneously
Part Number I.D. Wall Thickness Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4502-1000 1" 25.40mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.10 lb./ft. 0.15 KG/m 300ft
4502-1500 1-1/2" 38.10mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.21 lb./ft. 0.31 KG/m 300ft
4502-1500-050 1-1/2" 38.10mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.21 lb./ft. 0.31 KG/m 50ft
4502-2000 2" 50.80mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.25 lb./ft. 0.37 KG/m 300ft
4502-2000-050 2" 50.80mm 0.056" 1.42mm Knitted 85 PSI 5.86 BAR N/A 0.25 lb./ft. 0.37 KG/m 50ft
4502-2500 2-1/2" 63.50mm 0.060" 1.52mm Knitted 75 PSI 5.17 BAR N/A 0.29 lb./ft. 0.43 KG/m 300ft
4502-3000 3" 76.20mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR N/A 0.39 lb./ft. 0.58 KG/m 300ft
4502-3000-050 3" 76.20mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR N/A 0.39 lb./ft. 0.58 KG/m 50ft
4502-4000 4" 101.60mm 0.062" 1.57mm Knitted 70 PSI 4.83 BAR N/A 0.60 lb./ft. 0.89 KG/m 300ft
4502-6000 6" 152.40mm 0.077" 1.96mm Knitted 50 PSI 3.45 BAR N/A 1.15 lb./ft. 1.71 KG/m 300ft
4502-8000 8" 203.20mm 0.089" 2.26mm Knitted 45 PSI 3.10 BAR N/A 1.20 lb./ft. 1.79 KG/m 300ft
Part Number I.D. Coupling Reinforcement Max. Working Press. @ 68 deg. F Weight Standard Length
in. mm PSI BAR lb. KG ft
Cut - Coupled - Coiled - Tied
4502-1500-050AB 1-1/2" 38.10mm 1-1/2" AB Pin Lug (M x F) Knitted 85 PSI 5.86 BAR 9.00 lb./ft. 13.30 KG/m 50ft
4502-2000-050AB 2" 50.80mm 2" AB Pin Lug (M x F) Knitted 85 PSI 5.86 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4502-3000-050AB 3" 76.20mm 3" AB Pin Lug (M x F) Knitted 70 PSI 4.83 BAR 22.00 lb./ft. 32.60 KG/m 50ft
4502-1500-050CE 1-1/2" 38.10mm 1-1/2" Aluminum Cam Lock (C x E) Knitted 85 PSI 5.86 BAR 9.00 lb./ft. 13.30 KG/m 50ft
4502-2000-050CE 2" 50.80mm 2" Aluminum Cam Lock (C x E) Knitted 85 PSI 5.86 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4502-3000-050CE 3" 76.20mm 3" Aluminum Cam Lock (C x E) Knitted 70 PSI 4.83 BAR 22.00 lb./ft. 32.60 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
