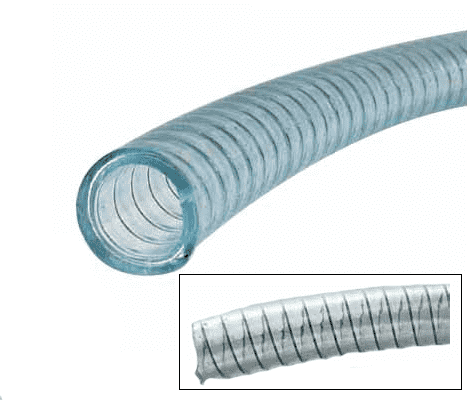

4600-1000 by Jason Industrial | 4600 Series | FDA Spring Wire Hose 75 PSI | 1" ID | 1.31" OD | Clear | PVC | 100ft

4600-1000 by Jason Industrial | 4600 Series | FDA Spring Wire Hose 75 PSI | 1" ID | 1.31" OD | Clear | PVC | 100ft

Save $3.25 Save $3.25
$313.92
$313.92 - $313.92
$313.92
$310.67
$310.67 - $310.67
$310.67

Jason Industrial Inc. Hose - Food Hose - 4600 FDA Spring Wire PVC Hose - Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 4600-1000 Jason | 100 |
Series: 4600 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.31in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Food and beverage dispensing, air, water, coolant, car wash, deionized water systems and other clear flow applications. SAE Rating: N/A
Other Ratings: FDA Grade Tube and Cover Tube: Crystal Clear FDA Grade PVC
Reinforcement: Electro-Galvanized Spring Steel Wire Cover: Crystal Clear FDA Grade PVC
Temperature Range: -14 deg. F (-26 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: None
Other Features:
  • Clear food grade PVC allows for visual flow inspection
  • Spring steel wire prevents kinking and collapsing
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4600-0380 3/8" 9.53mm 0.63" 16.00mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.10 lb./ft. 0.15 KG/m 0.80" 19.10mm 100ft
4600-0500 1/2" 12.70mm 0.71" 18.03mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.13 lb./ft. 0.19 KG/m 1.00" 25.40mm 100ft
4600-0630 5/8" 15.88mm 0.90" 22.86mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.17 lb./ft. 0.25 KG/m 1.20" 30.00mm 100ft
4600-0750 3/4" 19.05mm 1.06" 26.92mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.24 lb./ft. 0.36 KG/m 1.30" 34.00mm 100ft
4600-1000 1" 25.40mm 1.31" 33.27mm Wire Spring 72 PSI 5.17 BAR 29.0 inHg 0.34 lb./ft. 0.51 KG/m 1.70" 41.90mm 100ft
4600-1250 1-1/4" 31.75mm 1.61" 40.89mm Wire Spring 75 PSI 5.17 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 2.00" 50.80mm 50ft
4600-1500 1-1/2" 38.10mm 1.85" 46.99mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 0.55 lb./ft. 0.82 KG/m 2.50" 63.50mm 50ft
4600-2000 2" 5.80mm 2.36" 59.94mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 0.84 lb./ft. 1.25 KG/m 3.20" 82.00mm 50ft
4600-2500 2-1/2" 63.50mm 2.97" 75.44mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 1.21 lb./ft. 1.80 KG/m 5.50" 139.70mm 50ft
4600-3000 3" 76.20mm 3.51" 89.15mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 1.48 lb./ft. 2.20 KG/m 6.50" 165.10mm 50ft
4600-3500 3-1/2" 88.90mm 4.09" 103.89mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 1.95 lb./ft. 2.90 KG/m 7.50" 190.50mm 50ft
4600-4000 4" 101.60mm 4.57" 116.08mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 2.18 lb./ft. 3.24 KG/m 8.50" 215.90mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
