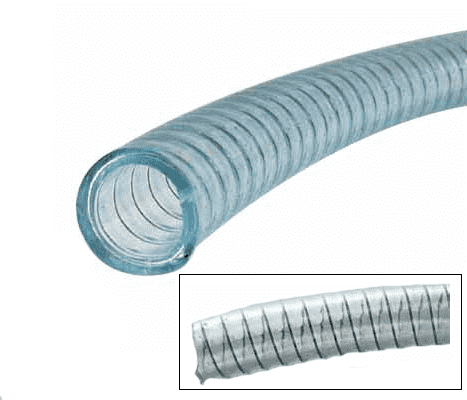

4600-3500 by Jason Industrial | 4600 Series | FDA Spring Wire Hose 50 PSI | 3-1/2" ID | 4.09" OD | Clear | PVC | 50ft

4600-3500 by Jason Industrial | 4600 Series | FDA Spring Wire Hose 50 PSI | 3-1/2" ID | 4.09" OD | Clear | PVC | 50ft

Save $8.33 Save $8.33
$855.00
$855.00 - $855.00
$855.00
$846.67
$846.67 - $846.67
$846.67

Jason Industrial Inc. Hose - Food Hose - 4600 FDA Spring Wire PVC Hose - Clear

Package Quantity: 50 FT

Specifications for Variant SKU: 4600-3500 Jason | 50 |
Series: 4600 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 3.50in
Outer Diameter: 4.09in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Food and beverage dispensing, air, water, coolant, car wash, deionized water systems and other clear flow applications. SAE Rating: N/A
Other Ratings: FDA Grade Tube and Cover Tube: Crystal Clear FDA Grade PVC
Reinforcement: Electro-Galvanized Spring Steel Wire Cover: Crystal Clear FDA Grade PVC
Temperature Range: -14 deg. F (-26 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: None
Other Features:
  • Clear food grade PVC allows for visual flow inspection
  • Spring steel wire prevents kinking and collapsing
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4600-0380 3/8" 9.53mm 0.63" 16.00mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.10 lb./ft. 0.15 KG/m 0.80" 19.10mm 100ft
4600-0500 1/2" 12.70mm 0.71" 18.03mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.13 lb./ft. 0.19 KG/m 1.00" 25.40mm 100ft
4600-0630 5/8" 15.88mm 0.90" 22.86mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.17 lb./ft. 0.25 KG/m 1.20" 30.00mm 100ft
4600-0750 3/4" 19.05mm 1.06" 26.92mm Wire Spring 100 PSI 6.89 BAR 29.0 inHg 0.24 lb./ft. 0.36 KG/m 1.30" 34.00mm 100ft
4600-1000 1" 25.40mm 1.31" 33.27mm Wire Spring 72 PSI 5.17 BAR 29.0 inHg 0.34 lb./ft. 0.51 KG/m 1.70" 41.90mm 100ft
4600-1250 1-1/4" 31.75mm 1.61" 40.89mm Wire Spring 75 PSI 5.17 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 2.00" 50.80mm 50ft
4600-1500 1-1/2" 38.10mm 1.85" 46.99mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 0.55 lb./ft. 0.82 KG/m 2.50" 63.50mm 50ft
4600-2000 2" 5.80mm 2.36" 59.94mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 0.84 lb./ft. 1.25 KG/m 3.20" 82.00mm 50ft
4600-2500 2-1/2" 63.50mm 2.97" 75.44mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 1.21 lb./ft. 1.80 KG/m 5.50" 139.70mm 50ft
4600-3000 3" 76.20mm 3.51" 89.15mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 1.48 lb./ft. 2.20 KG/m 6.50" 165.10mm 50ft
4600-3500 3-1/2" 88.90mm 4.09" 103.89mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 1.95 lb./ft. 2.90 KG/m 7.50" 190.50mm 50ft
4600-4000 4" 101.60mm 4.57" 116.08mm Wire Spring 50 PSI 3.45 BAR 29.0 inHg 2.18 lb./ft. 3.24 KG/m 8.50" 215.90mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
