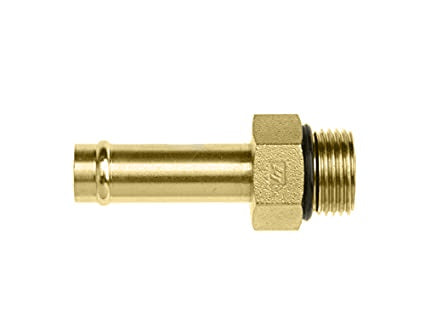

4604-06-04-O-B by Brennan Inc. | -06 Hose Barb x -04 Male O-Ring Boss | Straight | Brass

4604-06-04-O-B by Brennan Inc. | -06 Hose Barb x -04 Male O-Ring Boss | Straight | Brass

$2.71 - $2.71
$2.71
$2.87
$2.87 - $2.87
$2.87

Brennan Inc.
Tube Fittings & Adapters: 4604 - Hose Barb x Male O-Ring Boss Straight
Specifications for Variant SKU: 4604-06-04-O-B Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male O-Ring Boss
Material(s): Brass
Part Number Material B1 TUBE O.D. B2 ORB B1 Drill B2 Drill L1 Length M Length C Hex
4604-04-04-O Steel 1/4" 7/16-20" 0.188" 0.188" 1.500" 0.660" 0.562"
4604-04-06-O Steel 1/4" 9/16-18" 0.189" 0.297" 1.500" 0.730" 0.687"
4604-05-04-O Steel 5/16" 7/16-20" 0.252" 0.172" 1.500" 0.670" 0.562"
4604-05-05-O Steel 5/16" 1/2-20" 0.252" 0.234" 1.500" 0.670" 0.625"
4604-06-04-O Steel 3/8" 7/16-20" 0.297" 0.172" 1.500" 0.670" 0.562"
4604-06-06-O Steel 3/8" 9/16-18" 0.297" 0.297" 1.500" 0.730" 0.687"
4604-06-08-O Steel 3/8" 3/4-16" 0.297" 0.391" 1.500" 0.850" 0.875"
4604-08-06-O Steel 1/2" 9/16-18" 0.406" 0.297" 1.500" 0.750" 0.688"
4604-08-08-O Steel 1/2" 3/4-16" 0.406" 0.391" 1.500" 0.850" 0.875"
4604-10-08-O Steel 5/8" 3/4-16" 0.500" 0.391" 1.500" 0.882" 0.875"
4604-10-10-O Steel 5/8" 7/8-14" 0.500" 0.484" 1.500" 0.980" 1.000"
4604-10-12-O Steel 5/8" 1-1/16-12" 0.500" 0.609" 1.500" 1.090" 1.250"
4604-12-08-O Steel 3/4" 3/4-16" 0.609" 0.391" 1.500" 0.950" 1.000"
4604-12-10-O Steel 3/4" 7/8-14" 0.609" 0.484" 1.500" 1.000" 1.000"
4604-12-12-O Steel 3/4" 1-1/16-12" 0.609" 0.609" 1.500" 1.100" 1.250"
4604-12-16-O Steel 3/4" 1-5/16-12" 0.625" 0.844" 1.500" 1.100" 1.500"
4604-16-10-O Steel 1" 7/8-14" 0.843" 0.484" 1.500" 1.000" 1.250"
4604-16-12-O Steel 1" 1-1/16-12" 0.843" 0.609" 1.500" 1.100" 1.250"
4604-16-14-O Steel 1" 1-3/16-12" 0.844" 0.719" 1.500" 1.100" 1.375"
4604-16-16-O Steel 1" 1-5/16-12" 0.844" 0.844" 1.500" 1.100" 1.500"
4604-16-20-O Steel 1" 1-5/8-12" 0.843" 1.078" 1.500" 1.200" 1.875"
4604-20-10-O Steel 1-1/4" 7/8-14" 1.094" 0.484" 1.500" 1.075" 1.500"
4604-20-12-O Steel 1-1/4" 1-1/16-12" 1.094" 0.609" 1.500" 1.209" 1.375"
4604-20-16-O Steel 1-1/4" 1-5/16-12" 1.094" 0.844" 1.500" 1.218" 1.500"
4604-20-20-O Steel 1-1/4" 1-5/8-12" 1.094" 1.083" 1.500" 1.218" 1.875"
4604-20-24-O Steel 1-1/4" 1-7/8-12" 1.094" 1.312" 1.500" 1.270" 2.125"
4604-20-32-O Steel 1-1/4" 2-1/2-12" 1.094" 1.781" 1.500" 1.280" 2.750"
4604-24-16-O Steel 1-1/2" 1-5/16-12" 1.343" 0.844" 1.500" 1.130" 1.688"
4604-24-20-O Steel 1-1/2" 1-5/8-12" 1.343" 1.078" 1.500" 1.218" 1.875"
4604-24-24-O Steel 1-1/2" 1-7/8-12" 1.343" 1.312" 1.500" 1.278" 2.125"
4604-32-32-O Steel 2" 2-1/2-12" 1.843" 1.781" 1.500" 1.440" 2.750"

4604-06-04-O-B Brass 3/8" 7/16-20" 0.297" 0.172" 1.500" 0.670" 0.562"
