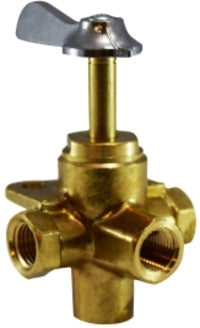

46255 (46-255) Midland M-114-MID with Click 360° 4 Way Ball Valve - Bottom Outlet - 1/4" Female Pipe - Brass

46255 by Midland | M-114-MID with Click 360° 4 Way Ball Valve | Bottom Outlet | 1/4" Female Pipe | Brass

Save $4.43 Save $4.43
$28.43
$28.43 - $28.43
$28.43
$24.00
$24.00 - $24.00
$24.00

Midland Industries
Brass Fitting - Specialty Valve Fitting - M-114-MID with Click 360° 4 Way Ball Valve - Bottom Outlet - Brass

Inventory @ Manufacturers Warehouse: 74 Units
Specifications for Variant SKU: 46255 Midland
Shape (Orientation): Cross
Ends Configuration: 1/4in Female NPT, 1/4in Female NPT, 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Side Outlet.
  • Bracket Mounting.
  • O-Ring Sealed.
  • 4-way celcon roter standard.
Part Number A-B-C-D Female Pipe Thread Length of Stem
46255
(46-255)		 1/4" 1-3/8"
46256
(46-256)		 3/8" 1-3/8"

Openings:
Handle Pointer over A..........Valve Open A-D
Handle Pointer over C..........Valve Open C-D
Handle Pointer over B..........Valve Open B-D
Handle Pointer over Bracket..........Valve "OFF"

Dimension Data can change without notice.
