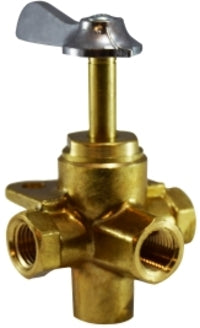

46260 (46-260) by Midland | 2-3/8" Long Stem M-115-MID 4 Way Valve | Bottom Outlet | 1/4" Female Pipe | Cross | Brass

Save $3.86

$24.85

$24.85 - $24.85

$24.85

$20.99

$20.99 - $20.99

$20.99

Midland Industries
Brass Fitting - Specialty Valve Fitting - 2-3/8" Long Stem M-115-MID 4 Way Valve - Bottom Outlet - Brass

Quantity

Specifications for Variant SKU: 46260 Midland
Shape (Orientation):	Cross
Ends Configuration:	1/4in Female NPT, 1/4in Female NPT, 1/4in Female NPT, 1/4in Female NPT, 2-3/8in Tube Stem, Some Ends Match
Material(s):	Brass

Features:
Side Outlet. Bracket Mounting. O-Ring Sealed. 4-way celcon roter standard.


Part Number	A-B-C-D Female Pipe Thread	Length of Stem
46260 (46-260)	1/4"	2-3/8"

Openings:
Handle Pointer over A..........Valve Open A-D
Handle Pointer over C..........Valve Open C-D
Handle Pointer over B..........Valve Open B-D
Handle Pointer over Bracket..........Valve "OFF"

Dimension Data can change without notice.
