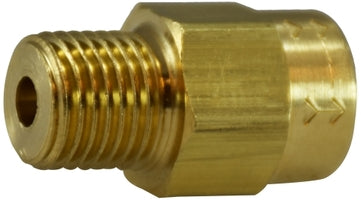

46505 (46-505) Midland High Pressure Check Valve (2500 PSI) - 1/4" Male NPT x 1/4" Female NPT - Brass

46505 "46-505" by Midland | High Pressure Check Valve | 1/4" Male NPT x 1/4" Female NPT | 2500 PSI | Brass

Save $1.11 Save $1.11
$15.76
$15.76 - $15.76
$15.76
$14.65
$14.65 - $14.65
$14.65

Midland Industries
Brass Fitting - High Pressure Check Valve - Male NPT x Female NPT - Brass

Max. 2500 PSI

Inventory @ Manufacturers Warehouse: 1222 Units
Specifications for Variant SKU: 46505 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Flo direction ->
  • Opening diameter .187"
  • 180° max operating temp
  • Buna Seal
  • SS ball and spring
Part Number Male NPT x Female NPT Opening Diameter
46505
(46-505)		 1/4" x 1/4" 0.187"

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
