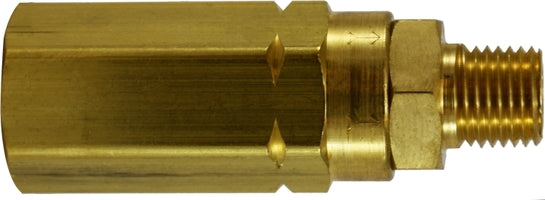

46514 (46-514) by Midland | High Pressure Check Valve (3000 PSI) | 1/4" Female Pipe x 1/4" Male Pipe | Straight | Brass

46514 (46-514) by Midland | High Pressure Check Valve (3000 PSI) | 1/4" Female Pipe x 1/4" Male Pipe | Straight | Brass

Save $6.62 Save $6.62
$42.58
$42.58 - $42.58
$42.58
$35.96
$35.96 - $35.96
$35.96

Midland Industries
Brass Fitting - High Pressure Check Valve - Female Pipe x Male Pipe - Brass

Max Operating Pressure: 3000 PSI

Good for air applications.

Inventory @ Manufacturers Warehouse: 10 Units
Specifications for Variant SKU: 46514 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Male NPT, Some Ends Match
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Operates in any position.
  • Standard Cracking Pressure: 1 PSI
  • Maximum Operating Temperatures: 180° F using Buna-N seals.
  • Buna-N seals standard.
  • Guided 316 stainless steel ball and spring.
  • Fixed ringed seat prevents extrusion of seal.
  • Opening diameter .28"
  • Approximate CV 1.2
  • Water G.P.M. @ 10 PSI is 4.0
Part Number Female Pipe x Male Pipe
46514
(46-514)		 1/4" x 1/4"
46518
(46-518)		 3/8" x 3/8"

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
