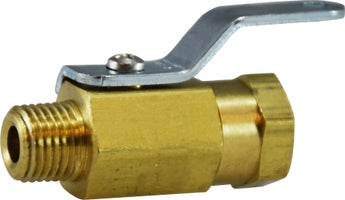

46900 (46-900) Midland Miniature Ball Valve - 1/8" Male Pipe x 1/8" Female Pipe - Brass

46900 by Midland | Miniature Ball Valve | 1/8" Male Pipe x 1/8" Female Pipe | Brass

Save $1.59 Save $1.59
$22.28
$22.28 - $22.28
$22.28
$20.69
$20.69 - $20.69
$20.69

Midland Industries
Brass Fitting - Miniature Ball Valve - Male Pipe x Female Pipe - Brass

Ideal for tight, confined areas, or when routing aesthetics are desired. Applications include water, oil, and air pressure systems.

Inventory @ Manufacturers Warehouse: 68 Units
Specifications for Variant SKU: 46900 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 1/8in Female NPT
Material(s): Brass
Seal Material(s): Viton
Features:
  • Working Pressure up to 1000 P.S.I.G.
  • ASTM B-16 Corrosion Resistant brass body.
  • Non-Adjusting Viton O-Ring stem seal design never needs tightening.
  • Highly inert Teflon seats.
  • Long life nickel plated brass ball.
  • Blow-Out proof stem for safety.
  • Temperature: -40°F to 300°F
  • 1/4 turn instantaneous on-off operation.
  • Quarter turn handle design.
Part Number Male Pipe x Female Pipe
46900
(46-900)		 1/8" x 1/8"
46903
(46-903)		 1/4" x 1/4"

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
