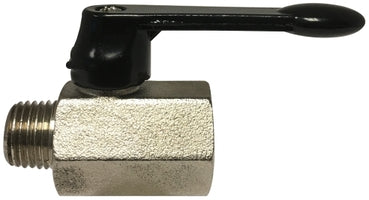

46931L (46-931L) Midland Mini Ball Valve - Lever Handle (Viton Seals) - 1/4" Male NPT x 1/4" Female NPT - Chrome Plated Brass

46931L by Midland | Mini Ball Valve | Lever Handle (Viton Seals) | 1/4" Male NPT x 1/4" Female NPT | Chrome Plated Brass

Save $0.52 Save $0.52
$7.41
$7.41 - $7.41
$7.41
$6.89
$6.89 - $6.89
$6.89

Midland Industries
Mini Ball Valve - Tee Handle (Viton Seals) - Female NPT x Female NPT - Chrome Plated Brass

450 PSI working pressure

Inventory @ Manufacturers Warehouse: 430 Units
Specifications for Variant SKU: 46931L Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): Chrome Plated Brass
Features:
  • At 212°F - 355 PSI
  • At 356°F - 142 PSI
  • Not lead free
Construction:
  • Chrome plated forged brass body
  • Chrome plated brass ball
  • 1/4 Turn Alumzinc handle
  • Made in China
Specifications:
  • NPT taper ANSI B1.20.1 threads
Part Components Materials N
1 Body CP Forged Brass 1
2 Ball Seats PTFE 2
3 Ball CP Brass 1
4 Ring Unit Brass 1
5 Stem Brass 1
6 O-Ring (flag handle) NBR 80 1
6 O-Ring (all others) Fluoroelastomer 1
Part Number Size A D(Flow) Handle G Weight
46934LT
(46-934LT)		 1/8" 1.60" 0.24" 1.34" 1.43" 0.21 lbs
46935LT
(46-935LT)		 1/4" 1.57" 0.31" 1.34" 1.43" 0.20 lbs
46936LT
(46-936LT)		 3/8" 1.60" 0.28" 1.34" 1.43" 0.22 lbs
46937LT
(46-937LT)		 1/2" 1.77" 0.35" 1.34" 1.52" 0.24 lbs
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
