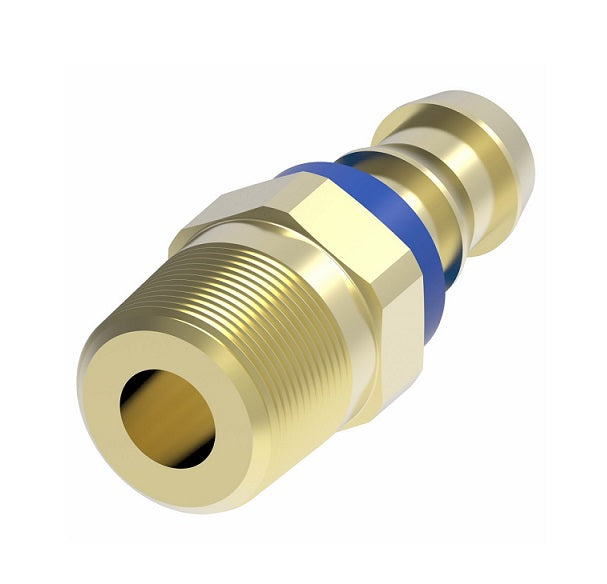

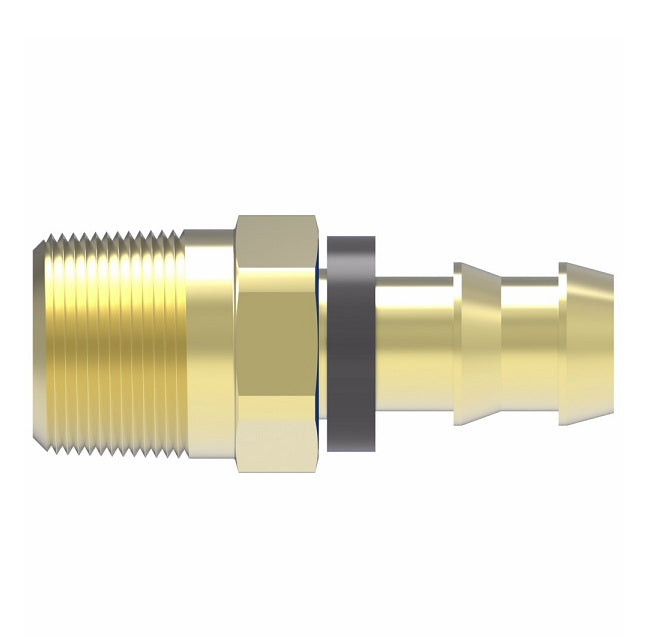

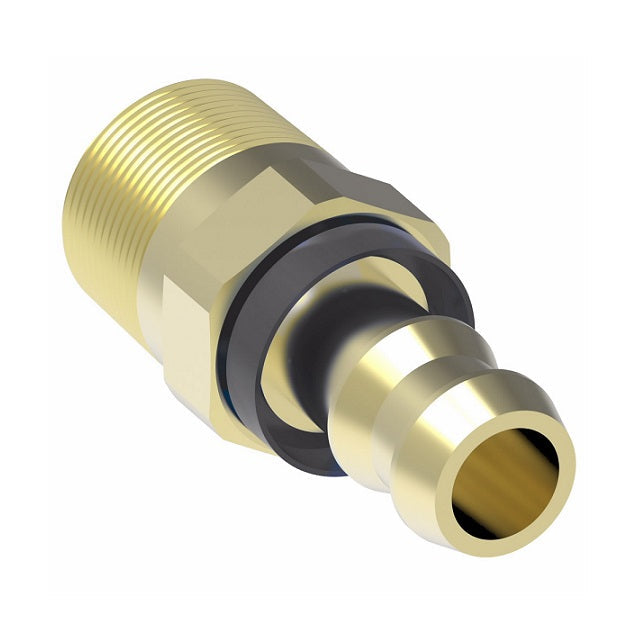

4738-4-6B Aeroquip by Danfoss | Male Pipe Socketless Reusable Hose Fitting | -04 Male Pipe x -06 Push-On Hose Barb | Brass

4738-4-6B Aeroquip by Danfoss | Male Pipe Socketless Reusable Hose Fitting | -04 Male Pipe x -06 Push-On Hose Barb | Brass

Name: 4738-4-6B Aeroquip by Danfoss | Male Pipe Socketless Reusable Hose Fitting | -04 Male Pipe x -06 Push-On Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 4738-4-6B Danfoss
Price: 3.15 USD
Availability: InStock

$3.15 - $3.15

$3.15

$3.15 - $3.15

$3.15

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4738-4-6B Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 3/8in Push-On Hose Barb
Compatible with the following Series:	2556 \| 2565 \| 2575 \| FC332 \| FC647 \| H201

Technical Info:
Reusable Fitting Socket Data.PDF


Brass Part Number	Hose Size	Thread	A	D	EØ
4738-2-4B	-04	1/8-27	1.45"	0.70"	0.17"
4738-4-4B	-04	1/4-18	1.63"	0.88"	0.17"
4738-4-6B	-06	1/4-18	1.80"	0.94"	0.30"
4738-6-6B	-06	3/8-18	1.80"	0.94"	0.30"
4738-6-8B	-08	3/8-18	1.95"	0.94"	0.39"
4738-8-8B	-08	1/2-14	2.20"	1.19"	0.39"
4738-8-10B	-10	1/2-14	2.73"	1.19"	0.48"
4738-12-12B	-12	3/4-14	2.77"	1.45"	0.61"
4738-16-16B	-16	1-11-1/2	3.08"	1.45"	0.85"
