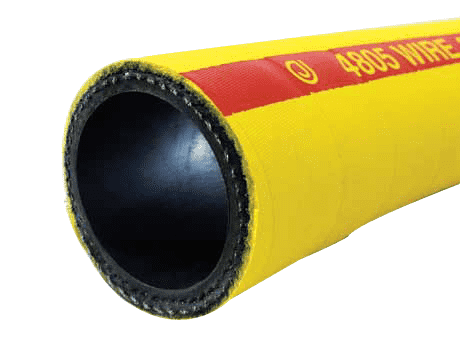

4805-0250-100 by Jason Industrial | 4805 Series | Wire Reinforced Air Hose | 600 PSI | 2-1/2" ID | 3.15" OD | Bright Yellow | NR/SBR | 100ft

4805-0250-100 by Jason Industrial | 4805 Series | Wire Reinforced Air Hose | 600 PSI | 2-1/2" ID | 3.15" OD | Bright Yellow | NR/SBR | 100ft

Save $12.52 Save $12.52
$1,187.19
$1,187.19 - $1,187.19
$1,187.19
$1,174.67
$1,174.67 - $1,174.67
$1,174.67

Jason Industrial Inc. Hose - Air Hose - 4805 Wire Reinforced Air Hose - Bright Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: 4805-0250-100 Jason | 100 |
Series: 4805 Series
Hose Color(s): Yellow
Internal Diameter: 2.50in
Outer Diameter: 3.15in
Tubing Construction: Nitrile Blend
Cover Construction: SBR
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For heavy duty air supply in mining, quarries, construction, industrial air place ment, sandblasting and heavy duty equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two Spiral Wires Cover: SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4805 WIRE AIR WP (PSI) (BAR)
Other Features:
  • Oil mist resistant tube with high working pressure
  • Bright yellow non-marking cover
  • Heavy duty cover makes this a durable hose
Part Number I.D. O.D. Reinforcement Spirals Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4805-0050-050 1/2" 12.70mm 0.91" 23.11mm 2 600 PSI 41.37 BAR N/A 0.36 lb./ft. 0.54 KG/m 5.50" 140.00mm 50ft
4805-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 600 PSI 41.37 BAR N/A 0.36 lb./ft. 0.54 KG/m 5.50" 140.00mm 100ft
4805-0075-050 3/4" 19.05mm 1.22" 30.99mm 2 600 PSI 41.37 BAR N/A 0.60 lb./ft. 0.98 KG/m 8.30" 210.00mm 50ft
4805-0075-100 3/4" 19.05mm 1.22" 30.99mm 2 600 PSI 41.37 BAR N/A 0.60 lb./ft. 0.98 KG/m 8.30" 210.00mm 100ft
4805-0100-050 1" 25.40mm 1.49" 37.85mm 2 600 PSI 41.37 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 50ft
4805-0100-100 1" 25.40mm 1.49" 37.85mm 2 600 PSI 41.37 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 100ft
4805-0125-050 1-1/4" 31.75mm 1.81" 45.97mm 2 600 PSI 41.37 BAR N/A 1.05 lb./ft. 1.56 KG/m 13.80" 350.00mm 50ft
4805-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 600 PSI 41.37 BAR N/A 1.05 lb./ft. 1.56 KG/m 13.80" 350.00mm 100ft
4805-0150-050 1-1/2" 38.10mm 2.04" 51.82mm 2 600 PSI 41.37 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 50ft
4805-0150-100 1-1/2" 38.10mm 2.04" 51.82mm 2 600 PSI 41.37 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 100ft
4805-0200-050 2" 50.80mm 2.60" 66.04mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 50ft
4805-0200-100 2" 50.80mm 2.60" 66.04mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 100ft
4805-0200-200 2" 50.80mm 2.60" 66.04mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 200ft
4805-0250-050 2-1/2" 63.50mm 3.15" 80.01mm 2 600 PSI 41.37 BAR N/A 2.40 lb./ft. 3.57 KG/m 27.50" 700.00mm 50ft
4805-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 600 PSI 41.37 BAR N/A 2.40 lb./ft. 3.57 KG/m 27.50" 700.00mm 100ft
4805-0300-050 3" 76.20mm 3.70" 93.98mm 2 600 PSI 41.37 BAR N/A 3.22 lb./ft. 4.79 KG/m 33.10" 840.00mm 50ft
4805-0300-100 3" 76.20mm 3.70" 93.98mm 2 600 PSI 41.37 BAR N/A 3.22 lb./ft. 4.79 KG/m 33.10" 840.00mm 100ft
4805-0400-050 4" 101.60mm 4.88" 123.95mm 2 600 PSI 41.37 BAR N/A 4.70 lb./ft. 6.99 KG/m 44.10" 1120.00mm 50ft
4805-0400-100 4" 101.60mm 4.88" 123.95mm 2 600 PSI 41.37 BAR N/A 4.70 lb./ft. 6.99 KG/m 44.10" 1120.00mm 100ft
4805-0600-050 6" 152.40mm 6.89" 175.01mm 2 600 PSI 41.37 BAR N/A 6.82 lb./ft. 10.14 KG/m 63.00" 1600.20mm 50ft
4805-0600-100 6" 152.40mm 6.89" 175.01mm 2 600 PSI 41.37 BAR N/A 6.82 lb./ft. 10.14 KG/m 63.00" 1600.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
