4HT-BMK Dixon Steel HT-Series Quick Disconnect 1/2" ISO16028 Flushface Interchange Coupler Bulkhead Kit - 1.560" Mounting Hole ID

4HT-BMK Dixon Valve Steel HT-Series Quick Disconnect 1/2" ISO16028 Flushface Interchange Coupler Bulkhead Kit - 1.560" Mounting Hole ID

Save $0.26 Save $0.26
$6.67
$6.67 - $6.67
$6.67
$6.41
$6.41 - $6.41
$6.41

Dixon Quick Disconnect Couplings - HT-Series Hydraulic Couplings - HT-Series ISO16028 Flushface Interchange Coupler Bulkhead Kits
Specifications for Variant SKU: 4HT-BMK Dixon
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange Data:
  • Interchangeable to ISO16028
  • Parker FEM-Series
  • Snap-Tite 74-Series
  • Hansen FF
  • Aeroquip/Eaton FD89
  • Stucchi A/FIRG
  • Faster FFH/2FFN/2FFI
  • Safeway FF49-Series
Applications:

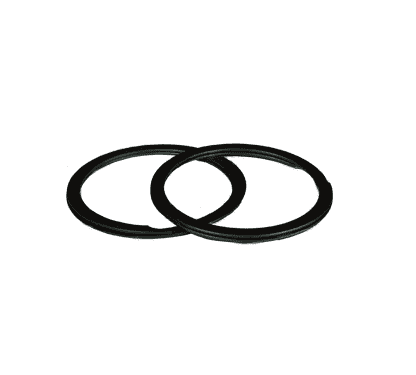

Part Number Body Size Mounting Hole ID Ring Material Bulkhead Kit Contents
2HT-BMK 1/4" 1.125" Steel two 360 deg. retaining rings
3HT-BMK 3/8" 1.250" Steel two 360 deg. retaining rings
4HT-BMK 1/2" 1.560" Steel two 360 deg. retaining rings
5HT-BMK 5/8" 1.685" Steel two 360 deg. retaining rings
6HT-BMK 3/4" 1.870" Steel two 360 deg. retaining rings
8HT-BMK 1" 2.310" Steel two 360 deg. retaining rings
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
