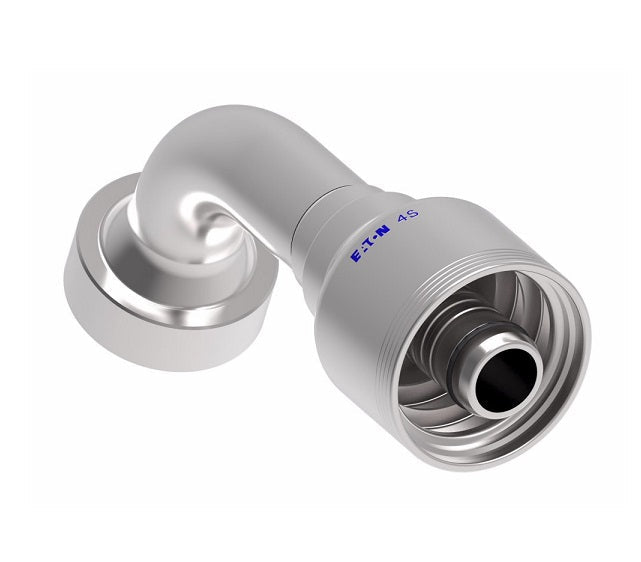

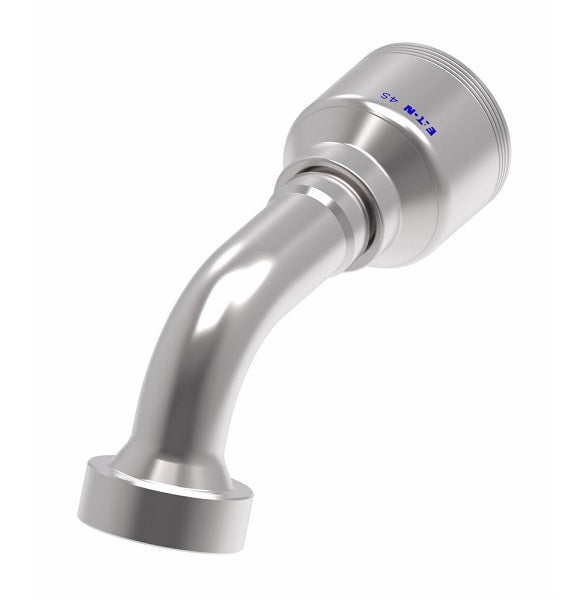

4S16CTE16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

4S16CTE16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

Name: 4S16CTE16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16CTE16 Danfoss
Price: 140.93 USD
Availability: InStock

$140.93 - $140.93

$140.93

$140.93 - $140.93

$140.93

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTE) - 67.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4S16CTE16 Danfoss
Shape (Orientation):	67.5 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S12CTE12	-12	19	-12	1.63"	5.15"	3.72"	0.56"	1.90"
4S16CTE16	-16	25	-16	1.87"	5.98"	4.42"	0.76"	2.20"
4S20CTE16	-20	25	-16	2.13"	6.96"	5.40"	0.76"	2.68"
4S24CTE24	-24	38	-24	2.50"	9.64"	6.57"	1.22"	3.02"
4S32CTE32	-32	51	-32	3.13"	11.72"	8.65"	1.66"	3.97"
