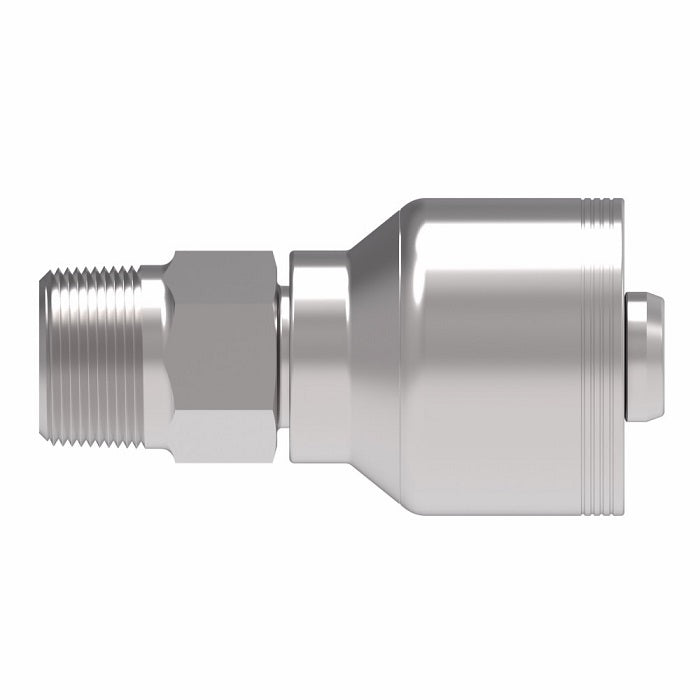

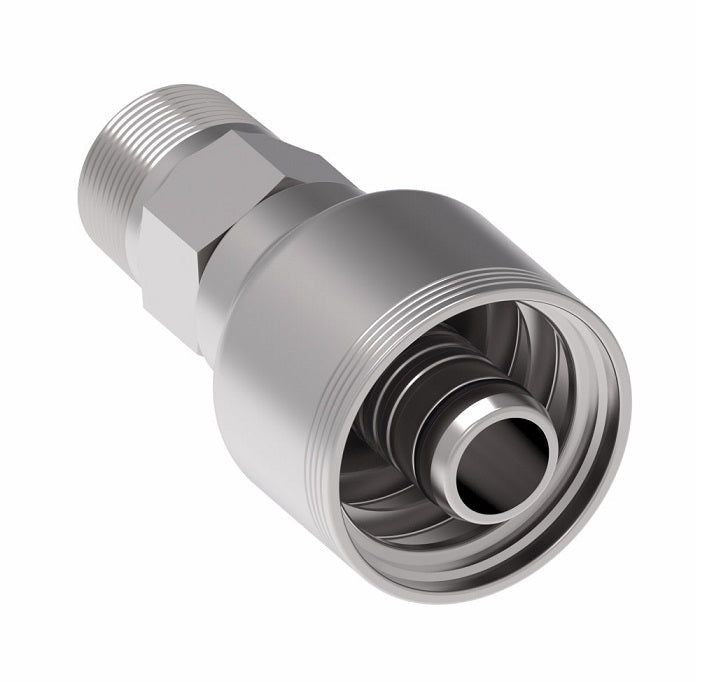

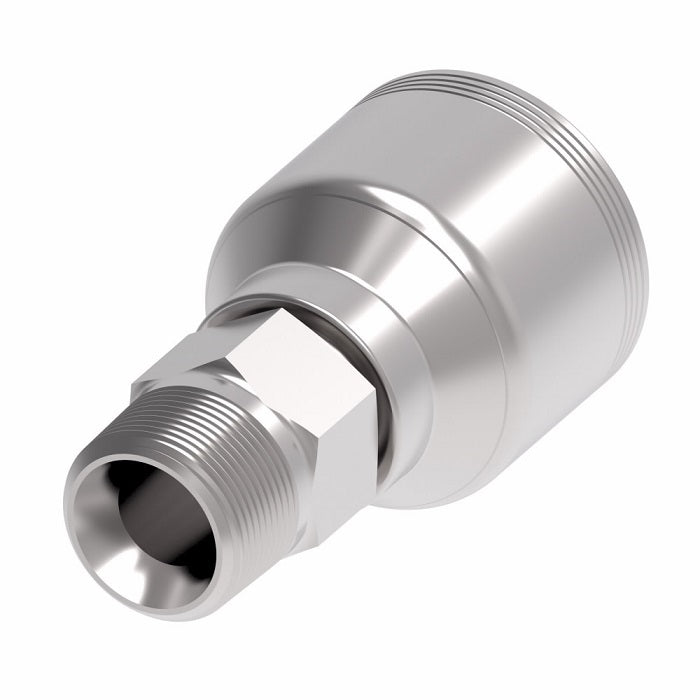

4SA6MP6 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -06 Hose Barb | Steel
4SA6MP6 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -06 Hose Barb | Steel
4SA6MP6 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -06 Hose Barb | Steel
4SA6MP6 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -06 Hose Barb | Steel

4SA6MP6 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -06 Hose Barb | Steel

$15.92 - $15.92
$15.92
$15.92 - $15.92
$15.92

Aeroquip® by Danfoss
4 Wire 4S Male Pipe NPTF Rigid Crimp Fitting (MP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA6MP6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA4MP6 -04 - -06 1/4-18 2.02" 1.18" 0.26" 11/16"
4SA6MP6 -06 - -06 3/8-18 2.17" 1.27" 0.26" 11/16"
4SA8MP6 -08 - -06 1/2-14 2.11" 1.28" 0.26" 7/8"
4SA4MP8 -04 - -08 1/4-18 2.30" 1.23" 0.30" 13/16"
4SA6MP8 -06 - -08 3/8-18 2.39" 1.32" 0.38" 13/16"
4SA8MP8 -08 - -08 1/2-14 2.80" 1.60" 0.38" 7/8"
4SA12MP8 -12 - -08 3/4-14 2.46" 1.39" 0.38" 1-1/16"
4SA8MP12 -08 19 -12 1/2-14 3.33" 1.90" 0.56" 7/8"
4SA8MP10 -08 - -10 1/2-14 2.61" 1.58" 0.50" 15/16"
4SA12MP10 -12 - -10 3/4-14 2.43" 1.40" 0.50" 1-1/16"
4SA12MP12 -12 19 -12 3/4-14 3.38" 1.95" 0.56" 1-1/16"
4SA16MP12 -16 19 -12 1-11-1/2 3.34" 1.91" 0.56" 1-3/8"
4SA12MP16 -12 25 -16 3/4-14 3.51" 1.94" 0.75" 1-3/8"
4SA16MP16 -16 25 -16 1-11-1/2 3.70" 2.13" 0.75" 1-3/8"
4SA20MP16 -20 25 -16 1-1/4-11-1/2 3.56" 1.99" 0.75" 1-11/16"
4SA16MP20 -16 31 -20 1-11-1/2 4.24" 2.07" 0.99" 1-7/16"
4SA20MP20 -20 31 -20 1-1/4-11-1/2 4.71" 2.54" 0.99" 1-11/16"
4SA24MP24 -24 38 -24 1-1/2-11-1/2 5.64" 2.57" 1.22" 2"
4SA32MP32 -32 51 -32 2-11-1/2 5.91" 2.84" 1.66" 2-1/2"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
