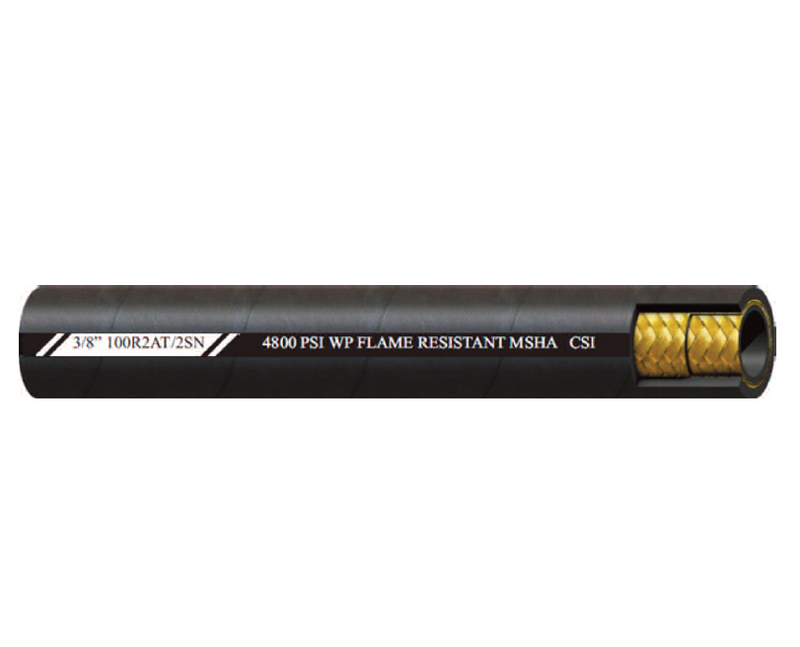

5/8" 2SN Couplamatic Import Thin Cover 2-Wire Hydraulic Hose (SAE 100R2AT/2SN) - 5/8" ID - 250ft

5/8" 2SN by Couplamatic | Import Thin Cover | 2-Wire Hydraulic Hose | SAE 100R2AT/2SN | 5/8" ID | 250ft

Save $93.83 Save $93.83
$844.50
$844.50 - $844.50
$844.50
$750.67
$750.67 - $750.67
$750.67

Couplamatic Systems Inc.
Two Wire Braid Hoses - 2SN Import Thin Cover 2-Wire Hydraulic Hose - SAE 100R2AT/2SN

Package Quantity: 250 FT

Specifications for Variant SKU: 5/8" 2SN Couplamatic | 250 |
Series: 2SN Series
Hose Color(s): Black
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 1.01in
Applicable Specs & Approvals: Applicable MSHA Standards
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series  |   GW Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R2AT/2SN
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" 2SN 1/4" 0.593" 5,800 lbs. 23,200 lbs. 4" 24 lbs. 500ft
3/8" 2SN 3/8" 0.750" 4,800 lbs. 19,200 lbs. 5" 34 lbs. 400ft
1/2" 2SN 1/2" 0.875" 4,000 lbs. 16,000 lbs. 7" 43 lbs. 300ft
5/8" 2SN 5/8" 1.010" 3,625 lbs. 14,500 lbs. 8" 51 lbs. 250ft
3/4" 2SN 3/4" 1.158" 3,125 lbs. 12,500 lbs. 9.5" 61 lbs. 250ft
1" 2SN 1" 1.500" 2,400 lbs. 9,600 lbs. 12" 88 lbs. 200ft
1-1/4" 2SN 1-1/4" 1.862" 1,800 lbs. 7,200 lbs. 16.5" 129 lbs. Bulk
1-1/2" 2SN 1-1/2" 2.115" 1,300 lbs. 5,200 lbs. 20" 161 lbs. Bulk
2" 2SN 2" 2.625" 1,150 lbs. 4,600 lbs. 25" 198 lbs. Bulk
