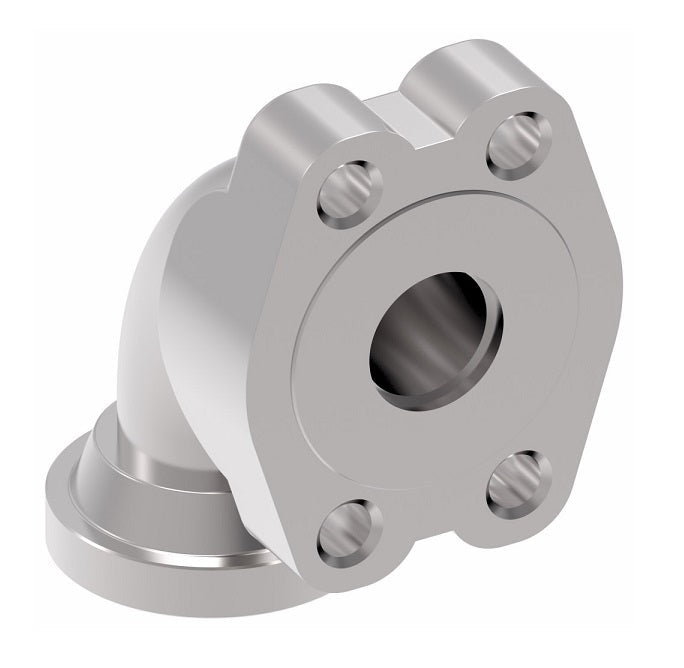

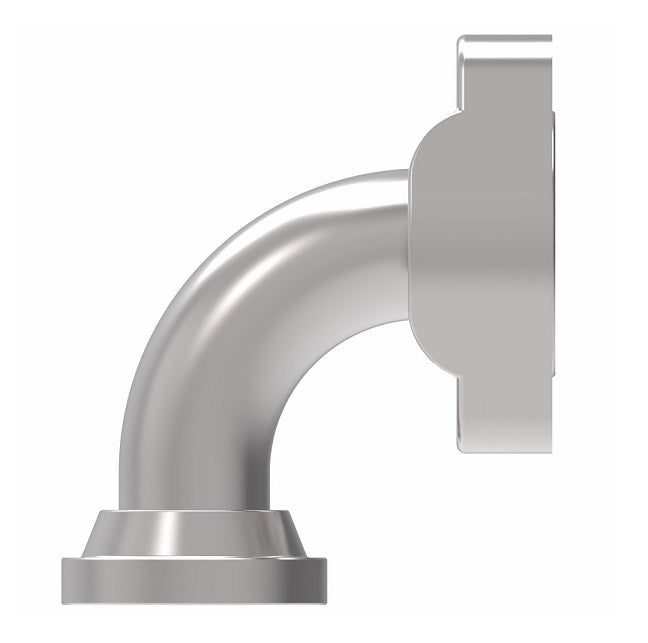

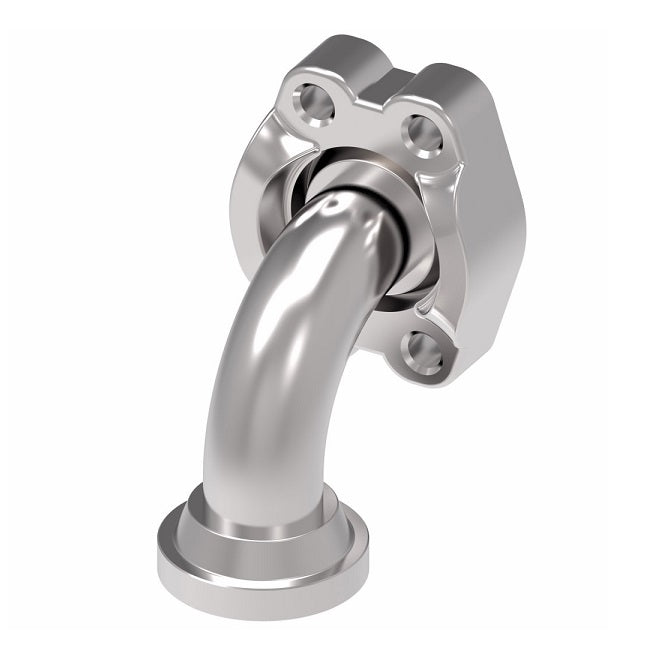

504089-20S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -20 Swivel Flange x -20 Code 61 Split Flange | Steel

504089-20S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -20 Swivel Flange x -20 Code 61 Split Flange | Steel

Name: 504089-20S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -20 Swivel Flange x -20 Code 61 Split Flange | Steel
Brand: Danfoss/Eaton
SKU: 504089-20S Danfoss
Price: 191.72 USD
Availability: InStock

$191.72 - $191.72

$191.72

$191.72 - $191.72

$191.72

Aeroquip® by Danfoss
SAE Swivel Flange to Code 61 Split Flange Adapter
Swivel Flange x Code 61 Split Flange
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 504089-20S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Code 61 Flange
Material(s):	Steel

Note:
Suitable for pressures through SAE 100R16 2 wire braid hose.


Part Number Steel	Shoulder Size	Flange Size	A	B
504089-16S	1"	1"	2.06"	2.37"
504089-20S	1-1/4"	1-1/4"	2.31"	2.50"
504089-24S	1-1/2"	1-1/2"	2.62"	2.75"
504089-32S	2"	2"	3.12"	3.25"
504089-40S	2-1/2"	2-1/2"	4.69"	5.19"
