504095-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

504095-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

Name: 504095-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Long Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 504095-16S Danfoss
Price: 46.88 USD
Availability: InStock

$46.88 - $46.88

$46.88

$46.88 - $46.88

$46.88

Aeroquip® by Danfoss

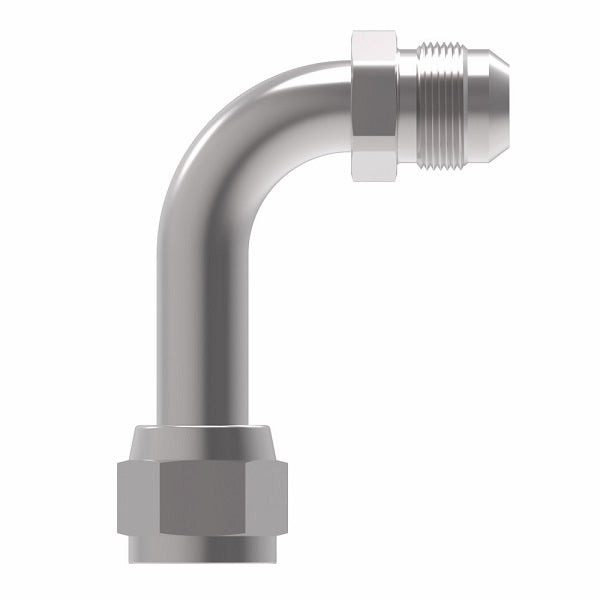

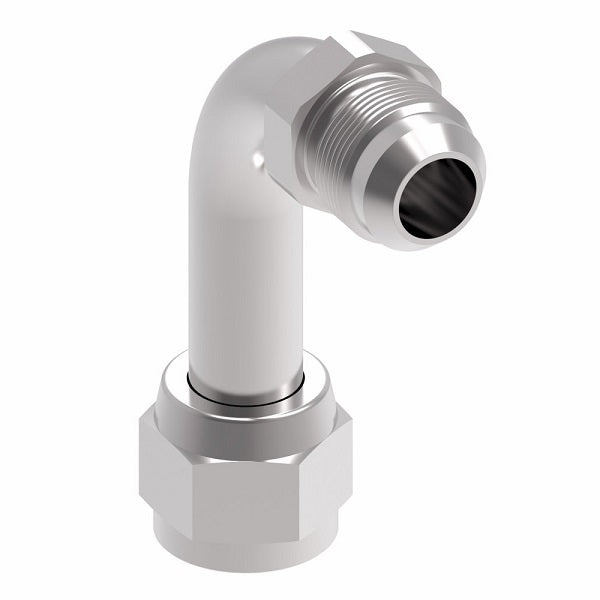

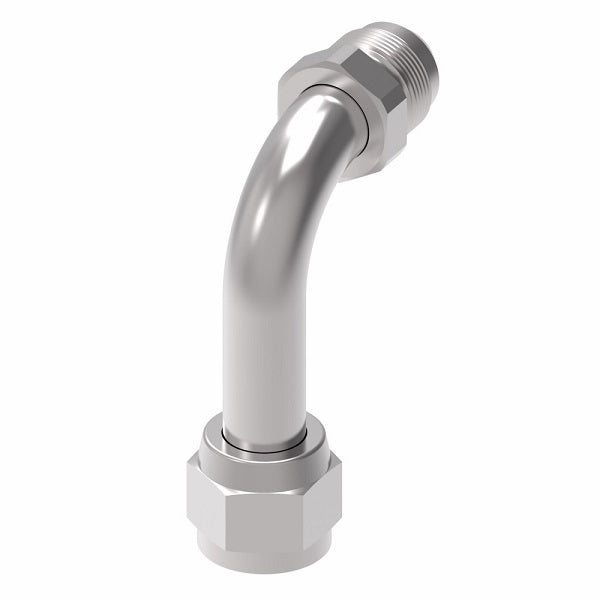

37° JIC Flare Swivel/37° JIC Flare Long Drop Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 504095-16S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female JIC, 1in Male JIC
Material(s):	Steel
Special Properties:	Swivel, Long Drop


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
504095-4S	0.25"	7/16-20	7/16-20	1.80"	1.12"
504095-6S	0.38"	9/16-18	9/16-18	2.18"	1.31"
504095-8S	0.50"	3/4-16	3/4-16	2.43"	1.78"
504095-10S	0.63"	7/8-14	7/8-14	2.57"	2.07"
504095-12S	0.75"	1-1/16-12	1-1/16-12	3.73"	2.49"
504095-16S	1.00"	1-5/16-12	1-5/16-12	4.58"	2.79"
504095-20S	1.25"	1-5/8-12	1-5/8-12	5.53"	3.14"
