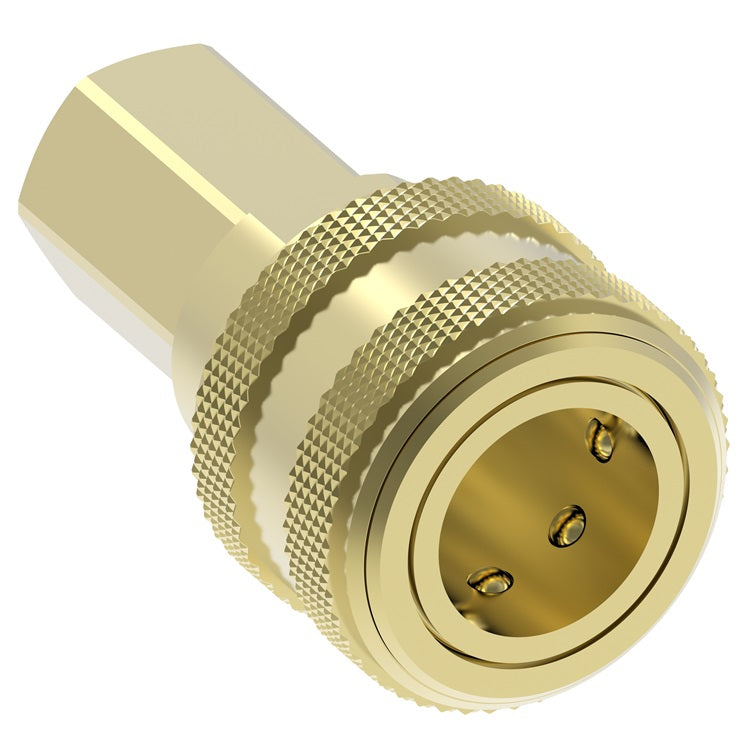

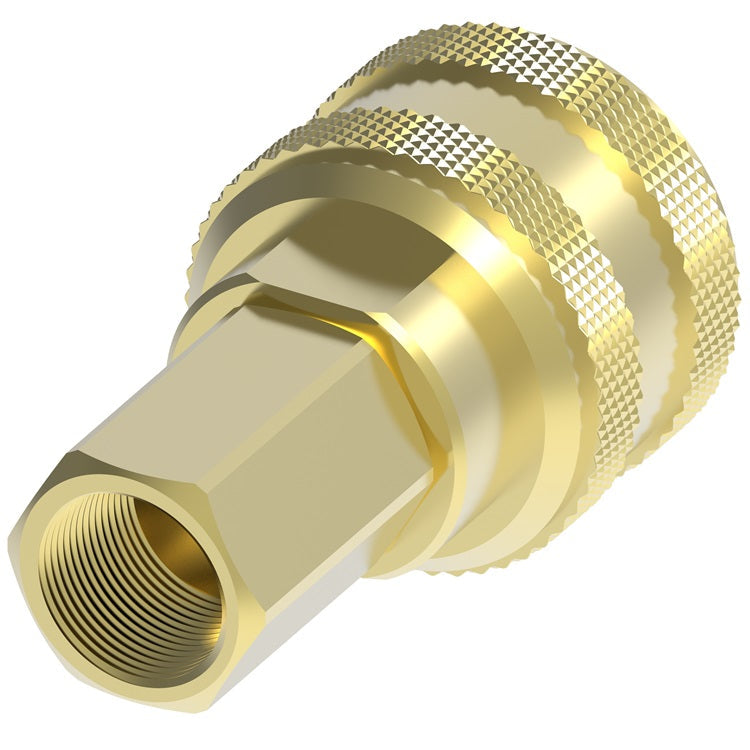

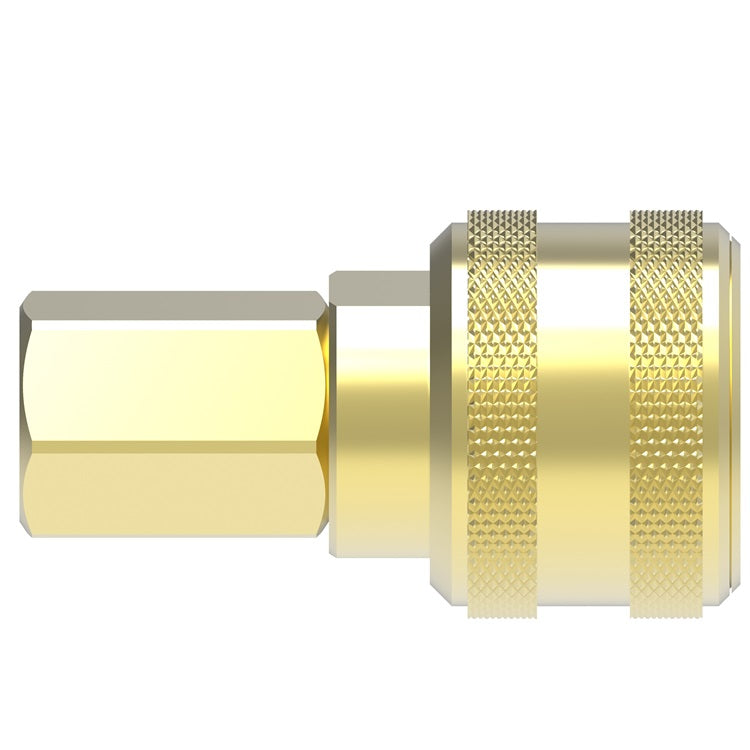

5200 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | 1/2" Female NPTF x 1/2" Body Size | Socket | NBR Seal | Brass

5200 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | 1/2" Female NPTF x 1/2" Body Size | Socket | NBR Seal | Brass

$36.16 - $36.16

$36.16

$36.16 - $36.16

$36.16

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 5000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.

Quantity

Specifications for Variant SKU: 5200 Danfoss
Brand:	Hansen
Series:	5000 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:	Industrial Breathing Air General Pneumatics Maintenance & Repair Fluid Transfer
Materials:	Standard body material: Brass Standard seal material: Nitrile (NBR)
Specifications:	All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
5000	1/2"	35 bar	500 psi	140 bar	2,000 psi	2,040 lpm	72 gpm

Interchangeability
All Sizes	1/4" & 1/2"
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)


Socket/Female (Figure 1)					Plug/Male (Figure 2)
5000 Series \| Sockets
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	A	B	Hex
5000A	Socket/Female	1/2"	1/4"	1/4-18 Male NPTF	Brass	1	2.72" (69.09mm)	1.50" (38.10mm)	1.00" (25.40mm)
5000	Socket/Female	1/2"	3/8"	3/8-18 Male NPTF	Brass	1	2.79" (70.87mm)	1.50" (38.10mm)	1.00" (25.40mm)
5200	Socket/Female	1/2"	1/2"	1/2-14 Male NPTF	Brass	1	3.07" (77.98mm)	1.50" (38.10mm)	1.00" (25.40mm)
5400E	Socket/Female	1/2"	3/4"	3/4-14 Male NPTF	Brass	1	3.10" (78.74mm)	1.50" (38.10mm)	1.19" (30.23mm)
5000 Series \| Plugs
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	C	D	Hex
53A	Plug/Male	1/2"	1/4"	1/4-18 Male NPTF	Brass	2	1.92" (48.8mm)	0.79" (20.1mm)	0.69" (17.5mm)
53	Plug/Male	1/2"	3/8"	3/8-18 Male NPTF	Brass	2	2.06" (52.3mm)	0.94" (23.9mm)	0.81" (20.6mm)
53G**	Plug/Male	1/2"	3/8"	3/8-18 Male NPTF	Brass	2	2.90" (73.7mm)	0.98" (24.9mm)	0.88" (22.4mm)
55	Plug/Male	1/2"	1/2"	1/2-14 Male NPTF	Brass	2	2.34" (59.4mm)	1.15" (29.2mm)	1.00" (25.4mm)
57	Plug/Male	1/2"	3/4"	3/4-14 Male NPTF	Brass	2	2.44" (62.0mm)	1.37" (34.8mm)	1.19" (30.2mm)

** With Bleeder Ball Check - Reduces Hose Whip.
