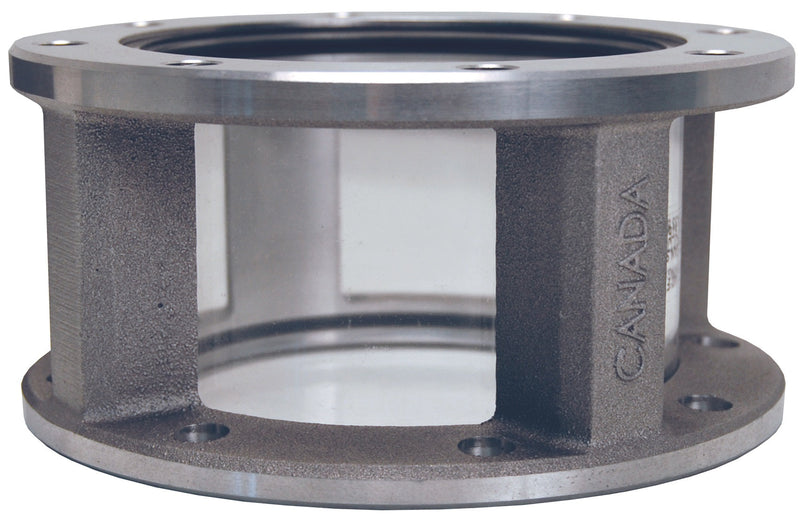

5201-SFI by Dixon Valve | Sight Flow Indicator | TTMA Flanged | 4" Size | 3-1/4" Width | 4-3/8" ID | Aluminum

5201-SFI by Dixon Valve | Sight Flow Indicator | TTMA Flanged | 4" Size | 3-1/4" Width | 4-3/8" ID | Aluminum

Save $20.47 Save $20.47
$199.16
$199.16 - $199.16
$199.16
$178.69
$178.69 - $178.69
$178.69

Dixon Valve
Tank Truck | Sight Flow Indicator | TTMA Flanged

Allows for visual identification of the fuel grade prior to opening the valve.

Works with tank truck flanged butterfly valves found on gasoline trucks.
Specifications for Variant SKU: 5201-SFI Dixon
Brand: Bayco
Shape (Orientation): Straight
Ends Configuration: 4in TTMA Flange, 4in TTMA Flange, Some Ends Match
Material(s): Aluminum
Features:
  • Larger ID 4-3/8" flow indicator allows tank truck flanged butterfly valves to connect to either end of the indicator.
Construction:
  • Durable cast aluminum housing.
  • Baylast™ O-ring.
  • Steel retainer ring.
Specifications:
  • Maximum flange bolt torque is 200 in. lbs.
  • Rated to 150 PSI
Safety Notes:
  • Due to the proprietary blending of petroleum products, Dixon recommends that the thermoplastic tubing and the gaskets be immersion tested in the product to be handled to ensure compatibility.
  • Not compatible with crude oil.
Part Number Size Width I.D. Fuel Compatibility
5201-SFI 4" 3-1/4" 4-3/8" Gasoline and diesel, up to E100 and B100 biofuels
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
