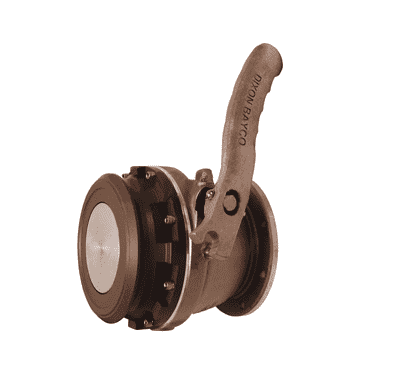

5204 Dixon Aluminum Load/Unload API Valve with Sight Glass, ALH Nose Ring - 7in Length

5204 Dixon Valve Aluminum Load/Unload API Valve with Sight Glass, ALH Nose Ring - 7in Length

Save $24.94 Save $24.94
$453.38
$453.38 - $453.38
$453.38
$428.44
$428.44 - $428.44
$428.44

Swivels & Rack Equipment - API Valves - API Load/Unload Valve - Aluminum

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5204 Dixon
Applications:
  • Used for bottom loading and unloading of petroleum tankers, Load/unload valve permits both terminal loading, and fuel unloading through the valve.
Features:
  • Unique fluid flow sight level.
  • Ergonomically curved handle operates on a short 62 deg. degree stroke.
  • Any required maintenance is simplified, Dixon Bayco API Valves can be completely rebuilt without the need to remove the valve from the tanker.
  • Nose ring is anodized hard coat aluminum, which in most applications will provide years of trouble free service. Nose ring can be rotated to provide a fresh connection service.
  • Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to drop adapters and rack couplers such as the Dixon Bayco 5300/5400 series rack coupler.
  • Aluminum body with anodized hard coat aluminum nose ring and stainless steel hardware.
  • Fixed aluminum handle.
  • Nylon sight glass.
  • Baylast™ seals.
Part Number Seal Style Length Weight (Lbs.)
5204 Baylast™ Sight glass and fixed handle 7" 12.5200
