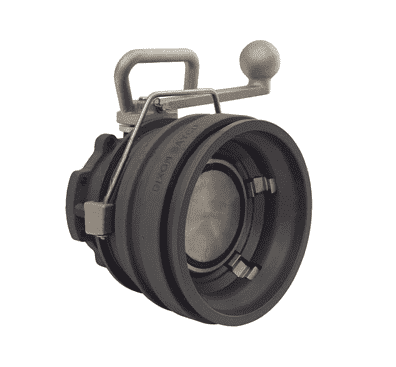

5300 Dixon 4" Aluminum API Coupler with Bonded Nose Seal - Buna

5300 Dixon Valve 4" Aluminum API Coupler with Bonded Nose Seal - Buna

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Swivels & Rack Equipment - API Couplers - API Coupler with Bonded Nose Seal - Aluminum

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5300 Dixon
Shape (Orientation): Straight
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • API couplers are used at the petroleum loading rack for bottom loading of petroleum tankers. They are mounted to the rack loading arm, using the built in 4" TTMA flange connection. When the empty Petroleum tanker pulls into the loading rack to load, the API couplers are connected to the API valves on the tanker. The connection interface consists of a poppet and a plunger, which ensures a positive spill free connection.
Features:
  • Modular design, allows various face seal combinations to be compatible with different alternative fuel / performance levels and applications.
  • No special tools need for maintenance, very easy.
  • Shaft seals can be changed without removing coupler from loading arm.
  • Locking 5 cam design for easy alignment and tight connection and safety interlock to help ensure coupler properly attached before valve opens.
  • Ball-end handle for easy, comfortable operation.
  • Bonded nose seal offers a long life and cannot be washed out.
  • Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to API valves such as the Dixon Bayco 5204 series API valves.
  • Pressure drop of only 3 to 4 PSI.
  • Peak Surge Pressure: 350 PSI.
  • 356 T6 aluminum anodized hard coat body with aluminum handle and stainless steel hardware.
  • Buna seals.
  • Hardened 17-4PH stainless steel link, shaft, pin and crank.
  • Stainless steel cam.
Part Number Size Seal Maximum Operating Pressure Flow Weight (Lbs.)
5300 4" Buna 150 PSI 600 GPM maximum 22.0500
5300B 4" FKM-B 150 PSI 600 GPM maximum 19.5000
5300G 4" FKM-GFLT 150 PSI 600 GPM maximum N/A
5300BC 4" FKM-B with stainless wave spring 150 PSI 600 GPM maximum 19.5000
