55040-6-4 AIGNEP | 55/56 Series | Union | 6mm Tube x 4mm Tube | Pack of 10

55040-6-4 by AIGNEP | 55/56 Series | Union | 6mm Tube x 4mm Tube | Pack of 10

Save $0.12

$13.03

$13.03 - $13.03

$13.03

$12.91

$12.91 - $12.91

$12.91

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55040-6-4 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Straight
Ends Configuration:	6mm Push-to-Connect, 4mm Push-to-Connect
Material(s):	Nylon

Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

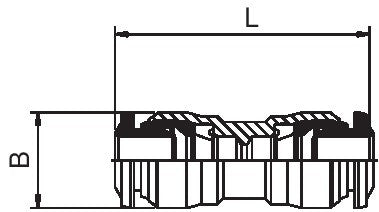

Product Number	Tube	Seal	B	L
55040-4	4 mm	NBR	10 mm	31 mm
55040-5	5 mm	NBR	12 mm	34 mm
55040-6	6 mm	NBR	12.5 mm	35 mm
55040-6-4	6 x 4 mm	NBR	12.5 mm	34 mm
55040-8	8 mm	NBR	14 mm	37 mm
55040-8-4	8 x 4 mm	NBR	14 mm	4 mm
55040-8-6	8 x 6 mm	NBR	14 mm	37.5 mm
55040-10	10 mm	NBR	17 mm	45 mm
55040-10-6	10 x 6 mm	NBR	17 mm	44 mm
55040-10-8	10 x 8 mm	NBR	17 mm	44 mm
55040-12	12 mm	NBR	20 mm	49 mm
55040-12-8	12 x 8 mm	NBR	20 mm	8 mm
55040-12-10	12 x 10 mm	NBR	20 mm	49 mm
55040-14	14 mm	NBR	21 mm	48 mm
55040-14-12	14 x 12 mm		21 mm	12 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
