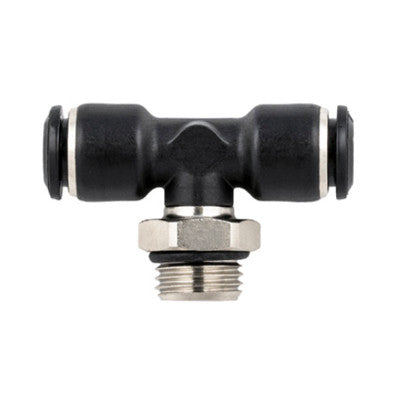

55215-14-3/8" AIGNEP | 55/56 Series | Swivel Branch Tee | 14mm Tube x 3/8" BSPP Male | Pack of 10

55215-14-3/8 by AIGNEP | 55/56 Series | Swivel Branch | 14mm Tube x 3/8" BSPP Male | Tee | Pack of 10

Save $0.39

$38.67

$38.67 - $38.67

$38.67

$38.28

$38.28 - $38.28

$38.28

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55215-14-3/8 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Tee
Ends Configuration:	14mm Push-to-Connect, 3/8in Male BSPP, 14mm Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Branch Tee Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

Product Number	Tube	A	B	L1	L2	CH1	CH2	D
55215-4-M5	4 mm	M5	3.6 mm	33 mm	15.5 mm	7 mm	9 mm	10 mm
55215-4-1/8	4 mm	1/8"	5.4 mm	33 mm	17.1 mm	7 mm	13 mm	10 mm
55215-4-1/4	4 mm	1/4"	7.1 mm	33 mm	18.8 mm	7 mm	16 mm	10 mm
55215-5-M5	5 mm	M5	6.6 mm	40 mm	14.7 mm	9 mm	9 mm	12 mm
55215-5-1/8	5 mm	1/8"	5.4 mm	40 mm	18.2 mm	9 mm	13 mm	12 mm
55215-6-M5	6 mm	M5	3.6 mm	41 mm	14.7 mm	9 mm	9 mm	12.5 mm
55215-6-1/8	6 mm	1/8"	5.4 mm	41 mm	18.4 mm	9 mm	13 mm	12.5 mm
55215-6-1/4	6 mm	1/4"	7.1 mm	41 mm	20 mm	9 mm	16 mm	12.5 mm
55215-8-1/8	8 mm	1/8"	5.4 mm	44 mm	22.1 mm	10 mm	13 mm	14 mm
55215-8-1/4	8 mm	1/4"	7.1 mm	44 mm	21.4 mm	10 mm	16 mm	14 mm
55215-8-3/8	8 mm	3/8"	8.1 mm	44 mm	22.8 mm	10 mm	20 mm	14 mm
55215-10-3/8	10 mm	3/8"	8.1 mm	53 mm	26.2 mm	13 mm	20 mm	17 mm
55215-10-1/2	10 mm	1/2"	9.6 mm	53 mm	27.7 mm	13 mm	25 mm	17 mm
55215-12-1/4	12 mm	1/4"	7.1 mm	61.5 mm	28.1 mm	16 mm	16 mm	20 mm
55215-12-3/8	12 mm	3/8"	8.1 mm	61.5 mm	27.6 mm	76 mm	23 mm	20 mm
55215-12-1/2	12 mm	1/2"	9.6 mm	61.5 mm	29.1 mm	16 mm	25 mm	20 mm
55215-14-3/8	14 mm	3/8"	8.1 mm	61 mm	31.8 mm	18 mm	20 mm	21 mm
55215-14-1/2	14 mm	1/2"	9.6 mm	61 mm	29.8 mm	18 mm	25 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
