55320-8-3/8" AIGNEP | 55/56 Series | Male Swivel Y | 8mm Tube x 3/8" Swift-Fit Male | Pack of 10

55320-8-3/8 by AIGNEP | 55/56 Series | Male Swivel | 8mm Tube x 3/8" Swift-Fit Male | Y | Pack of 10

Save $0.31

$30.67

$30.67 - $30.67

$30.67

$30.36

$30.36 - $30.36

$30.36

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55320-8-3/8 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Y
Ends Configuration:	8mm Push-to-Connect, 3/8in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Union Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

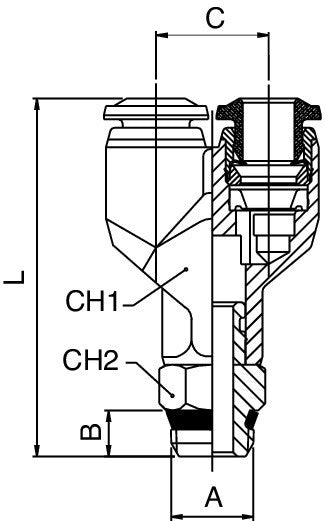

Product Number	Tube	A	B	C	L	CH1	CH2
55320-4-1/8	4 mm	1/8"	5.5 mm	11 mm	38 mm	10 mm	11 mm
55320-4-1/4	4 mm	1/4"	7 mm	11 mm	40.5 mm	10 mm	14 mm
55320-6-1/8	6 mm	1/8"	5.5 mm	13.5 mm	43 mm	12 mm	11 mm
55320-6-1/4	6 mm	1/4"	7 mm	13.5 mm	45.5 mm	12 mm	14 mm
55320-8-1/8	8 mm	1/8"	5.5 mm	15.5 mm	46.5 mm	14 mm	11 mm
55320-8-1/4	8 mm	1/4"	7 mm	15.5 mm	49 mm	14 mm	14 mm
55320-8-3/8	8 mm	3/8"	7.5 mm	15.5 mm	49.5 mm	14 mm	17 mm
55320-10-1/4	10 mm	1/4"	7 mm	19 mm	56.5 mm	17 mm	14 mm
55320-10-3/8	10 mm	3/8"	7.5 mm	19 mm	57.5 mm	17 mm	17 mm
55320-10-1/2	10 mm	1/2"	9 mm	19 mm	60 mm	17 mm	21 mm
55320-12-3/8	12 mm	3/8"	7.5 mm	22 mm	66.5 mm	20 mm	17 mm
55320-12-1/2	12 mm	1/2"	9 mm	22 mm	68 mm	20 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
